A protocol analyzer captures the electrical traffic on a digital communication bus and decodes it into human-readable transactions: packets, addresses, commands, and payload data. If a USB link will not enumerate, an I2C bus hangs mid-transaction, or a PCIe interface fails link training, a protocol analyzer is the instrument that shows exactly what was said between the two devices, instead of leaving you to infer it from a voltage trace.
How protocol analyzers work
Most protocol analyzers sit passively in-line, or tap the bus non-intrusively, capturing every bit exchanged at full bus speed. Dedicated hardware, rather than a shared-purpose oscilloscope front end, allows deep capture buffers and protocol-aware triggering, so the instrument can trigger on a specific packet type, an error condition, or a particular address, then step through the decoded transaction log exactly as the two devices experienced it.
Why an oscilloscope is not enough
A general-purpose oscilloscope shows raw voltage waveforms: it has no knowledge of the rules of the bus it is looking at. A «protocol analyzer», by contrast, understands the protocol itself, so instead of counting bit transitions by hand, the engineer gets a timestamped log of exactly what was transmitted, by whom, and whether it complied with the specification.
Why engineers need one
- Validating that a new USB, I2C, or PMBus device implementation conforms to the protocol specification;
- Root causing intermittent communication failures that a scope's basic serial trigger cannot isolate;
- Verifying timing and electrical compliance during pre-certification testing;
- Reverse engineering or auditing embedded communication for security and interoperability work.
Protocol analyzers from ALLdata

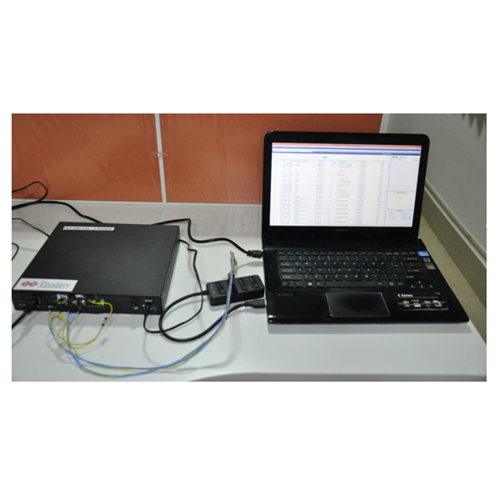

ALLdata distributes the Prodigy line of protocol analyzers, covering the buses most common in embedded and mixed-signal design: the Prodigy PGY-UHS II-PA for high-speed storage interfaces, the Prodigy PGY-100BASE-T1-PA for automotive Ethernet, the Prodigy PGY-I2C-EX-PD-Lite, the Prodigy PGY-UART-EX-PD, and the Prodigy PGY-PM Bus-EX-PD.
Not sure which bus and throughput your application needs? Talk to an ALLdata engineer.
