A capacitor's datasheet value is only true at one specific frequency and condition. If you need to know how an inductor, capacitor, or resistor actually behaves in your circuit, you need an LCR meter — the instrument built specifically to characterize passive components.
What Is an LCR Meter?
An LCR meter measures the impedance of a component (Inductance, Capacitance, Resistance — hence the name) by applying a small AC test signal across a range of frequencies and analyzing the resulting voltage and current, including their phase relationship. This gives you not just a single value but the full impedance behavior, including parasitic effects like ESR and dielectric loss that a simple ohmmeter can't reveal.
Key Specifications to Consider
- Test frequency range — how wide a frequency sweep the meter can perform; component behavior can change drastically across frequency
- Basic accuracy — particularly important for high-Q components and tight manufacturing tolerances
- Test signal level control — needed to characterize components under realistic bias and signal conditions
- Sorting/binning capability — essential for high-volume component sorting on a production line
Typical Applications
LCR meters are used for incoming component inspection, R&D characterization of filters and passive networks, transformer and motor winding analysis, and automated component sorting/binning in manufacturing.
LCR Meters from ALLdata

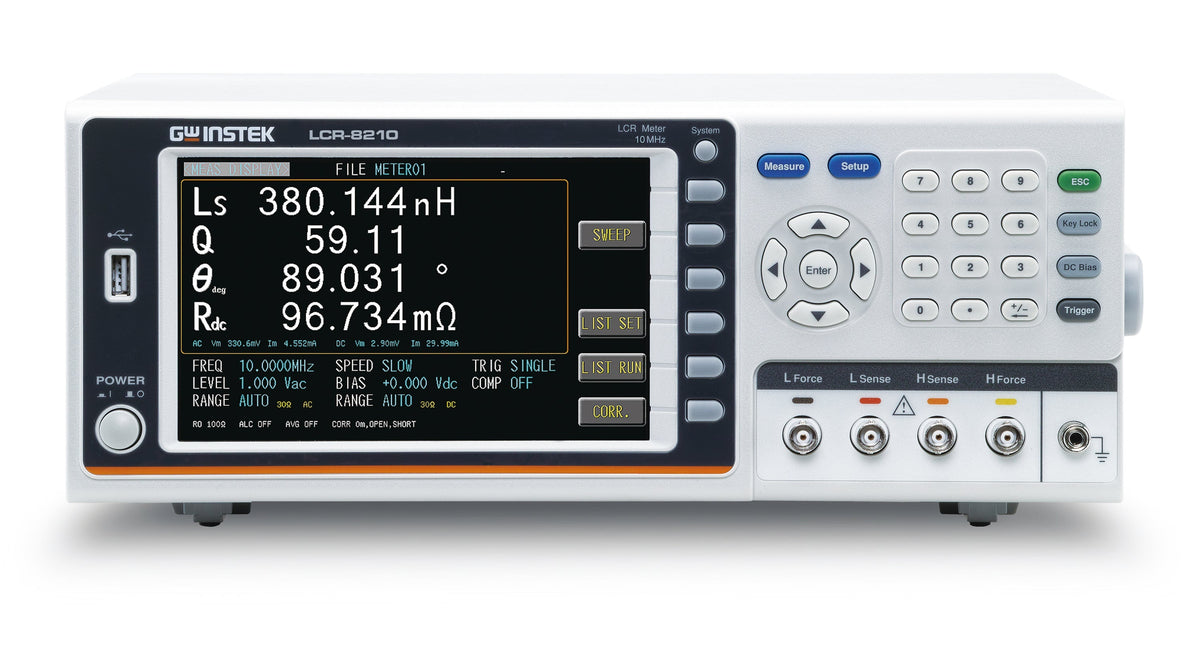

GW Instek's LCR-8000A series covers a wide range of test frequencies: the GW Instek LCR-8250A (up to 50 MHz), GW Instek LCR-8230A (up to 30 MHz), and GW Instek LCR-8210A (up to 10 MHz). Contact our team to match the right frequency range to your component testing needs.
