Chroma  |  SKU: chr61601

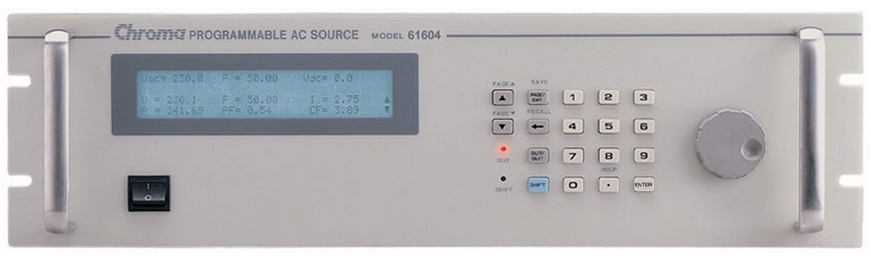

Chroma 61601 AC power supply unit 0-300V/15-1KHz/500VA, 1ø

Chroma Programmable AC Power Source 61600 series delivers pure, instrument grade AC power at very low cost. The 61600 series supplies the output voltage from 0 to 300VAC, and frequency from 15 to 1000Hz. It is suitable for commercial, avionics, and military applications from bench-top testing
to mass production.

Description



MODEL 61601
Power Rating 500VA
Phase 1
Voltage Range 0-150V/0-300V/ Auto
Frequency DC. 15Hz~1kHz
Parallel Capability Not Available



Features

Key Features：

  • Single-phase
  • Programmable slew rate setting for changing voltage and frequency
  • Programmable voltage and current limit
  • AC+DC output mode for voltage DC offset simulation
  • Comprehensive measurement capability
  • One-key recall for different voltage and frequency setting
  • High output current crest factor, ideal for inrush current testing
  • Built-in PFC, provide input power factor over 0.98 (full load)
  • Analog input for power amplifier
  • Turn on, turn off phase angle control
  • Remote control by GPIB, RS232, USB and Ethernet interface
