Chroma  |  SKU: chr61504

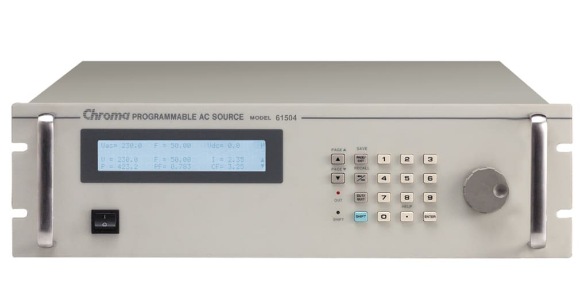

Chroma 61504 Programmable AC Power Supply0-300V, 15-1K Hz/2KVA, 1Ø

Chroma AC power source 61500 series sets up
the new standard for high performance AC power
source. It equips with all powerful features such
as power line disturbance (PLD) simulation,
programmable output impedance, comprehensive
measurement functions, wave-shape synthesis
and regulation test software. These features make
the 61500 series ideal for commercial, power
electronics, avionics, military and regulation test
applications from bench-top testing to mass
production.

Description



MODEL 61504
Power Rating 2000VA
Phase 1
Voltage Range 0-150V/0-300V/ Auto
Frequency DC. 15Hz~1kHz
Parallel Capability Not Available



Features

-Output Rating :

  • Power : 500VA (61501), 1000VA (61502), 1500VA (61503),
    2000VA (61504 ) 4000VA (61505)
  • Voltage range : 0-150V/0-300V/Auto
  • Compact size and weight attributable to advance PWM technology
  • AC+DC output mode for voltage DC offset simulation
  • Programmable slew rate setting for changing voltage and frequency
  • Low output impedance for testing IEC 61000-3-2 ( 61505 )
  • Programmable output impedance for testing IEC 61000-3-3
  • LIST, PULSE, STEP mode function for testing power line disturbance (PLD) simulation capability
  • IEC 61000-4-11 voltage dips, short and variation simulation
  • Harmonics, inter-harmonics waveform synthesizer for testing IEC 61000-4-13
  • Programmable voltage, current limit
  • Comprehensive measurement capability including current harmonics
  • High output current crest factor, ideal for inrush current testing
  • Turn on, turn off phase angle control
  • TTL signal which indicates output transient
  • Analog programmable interface
  • 3 units combined to 3-phase power output
  • Easy-use software for operation and IEC regulation test
  • Optional GPIB, RS-232, LAN and USB interface
