GW Instek  |  SKU: 01PS7100C0GT

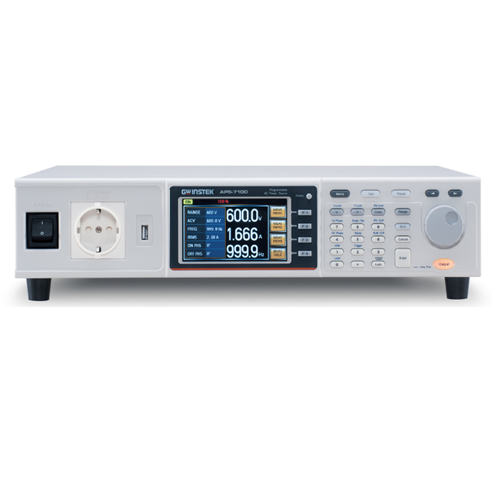

GW Instek APS-7100 1000VA linear AC programmable power supply. (Universal) socket

The APS-7000 series offers high power ratings, low noise, low THD (total harmonic distortion) and highly stabilized output. It is ideal in new product development and for input power supply verification . With low noise characteristics it is also widely used in stereo, video and audio applications.The maximum rated voltage is 0~310Vrms, 25.2Arms, peak current 100.8A and the output frequency range is 45~500.0Hz. Users can conveniently increase the output voltage from 0Vrms to 600Vrms and the output frequency from 45Hz to 999.9Hz by purchasing options without sending the equipment back to GW Instek.

Description
MODEL
 APS-7100
SKU 01PS7100C0GT
Output capacity

1000VA、310Vrms、8.4Arms
output

single

Features

Series Features

  • 4.3-inch TFT-LCD
  • Output capacity：APS-7050 (500VA、310Vrms、4.2Arms)；APS-7100 (1000VA、310Vrms、8.4Arms); APS-7200 (2000VA、310Vrms、16.8Arms); APS-7300 (3000VA、310Vrms、25.2Arms); Output augmentation by options (0~600Vrms/45~999.9Hz)
  • Low Ripple & Noise
  • Measurement and test functions include VOLT、CURR、PWR、SVA、IPK、IPKH、FREQ、PF、CF
  • Support a small AC current measurement 2mA ~ 35A, Min. resolution 0.01mA(APS- 7050& APS-7100)
  • Reverse Current Alarm Function
  • 10 sets of Sequence function to Edit Output Waveforms/ 10 sets of simulate mode to Rapidly Simulate Transient Power Supply/ 10 sets of Program mode to Define Measurement Sequence/ 10 sets of Panel Memory Function
  • Automatic Execution of Sequence、Simulate、Program mode and Output Function when the Power is on
  • Standard Interfaces: USB Host, USB Device, LAN
  • Optional Interfaces: GPIB (APS-001)；RS-232 / USB CDC(APS-002 for APS-7050& APS-7100 only)；RS-232(APS-007 for APS-7200& APS-7300 only)
