Chroma  |  SKU: chr62180D-600

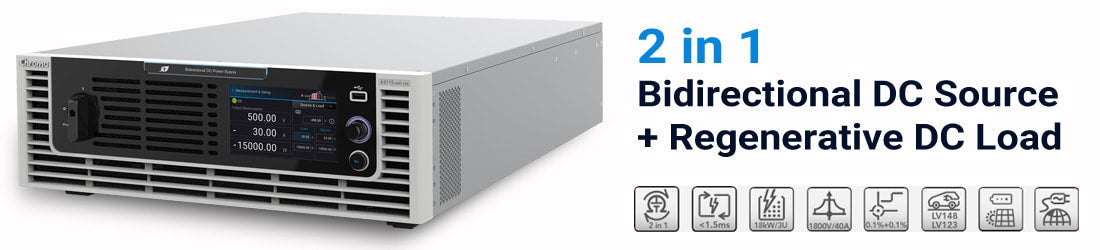

Chroma 62180D-600 600V/120A/18kW bidirectional regenerative DC power supply unit

€0,00
Tax included Shipping calculated at checkout.

Chroma 62000D is a bi-directional programmable DC power supply with source and load characteristics.

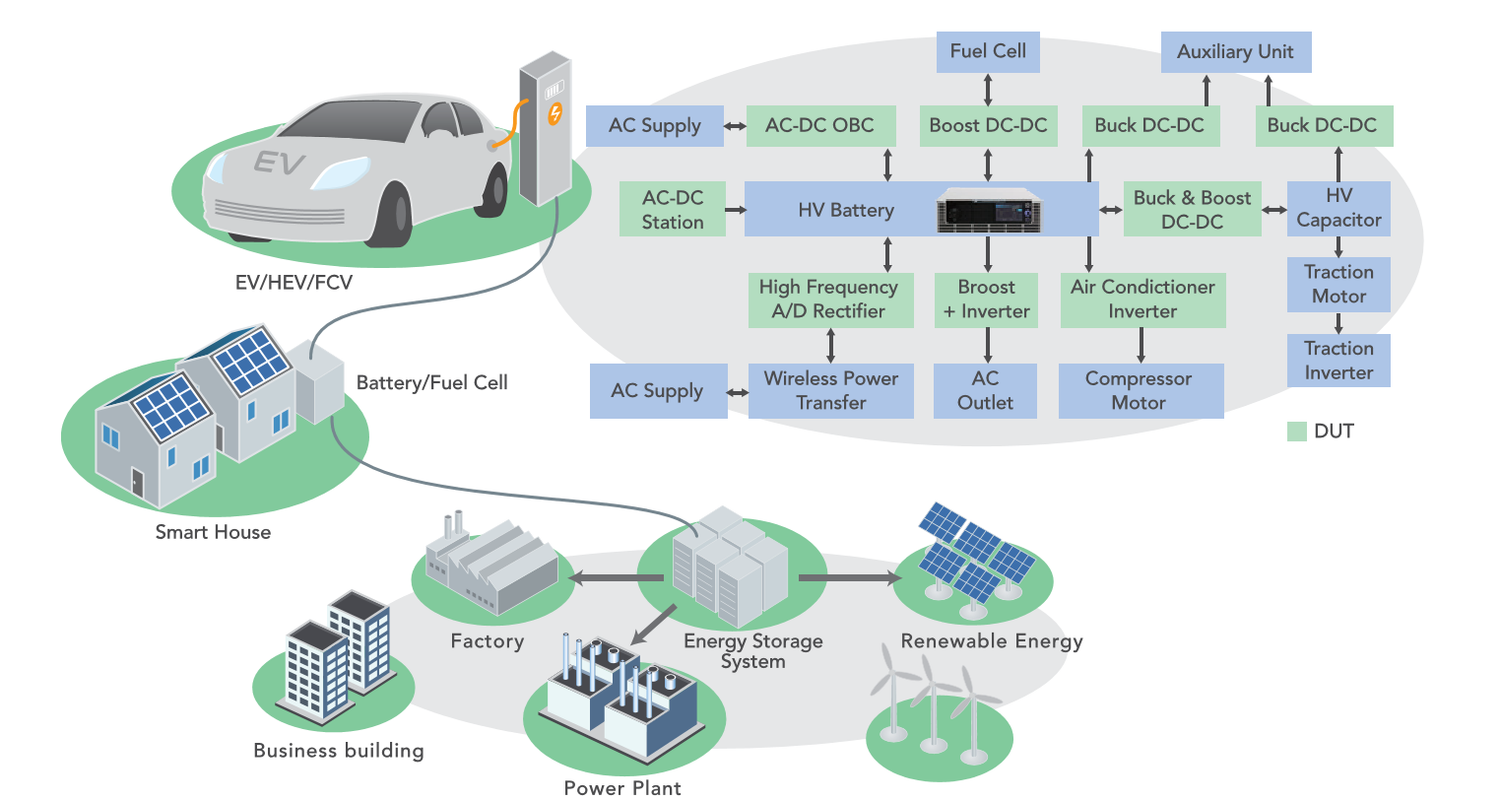

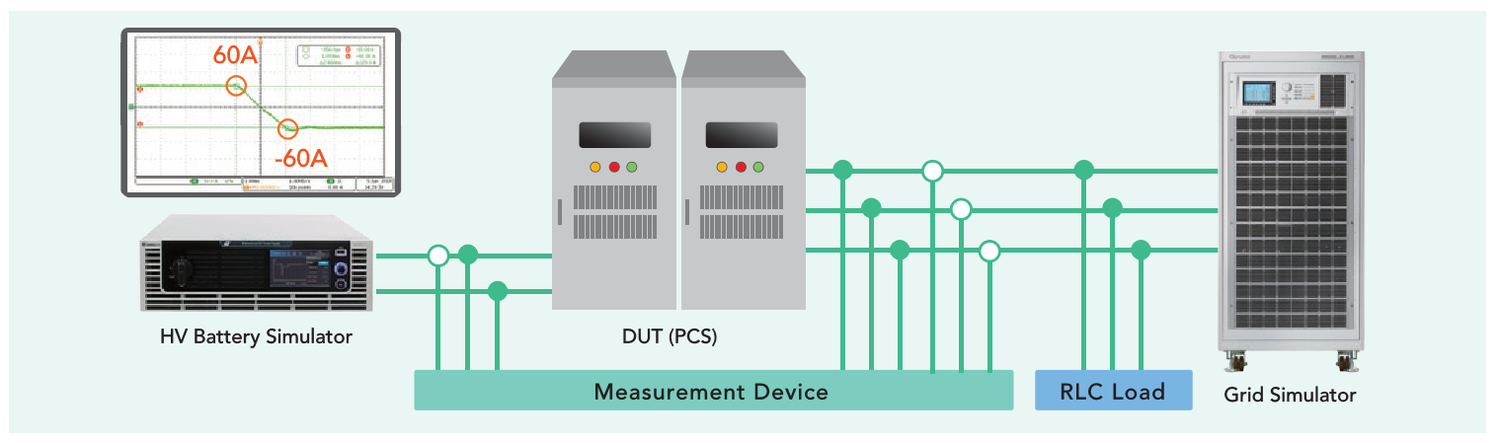

This two-quadrant power supply handles power from the DUT to be converted back to utility grid , thus being ideal for testing renewable energy systems such as PV, storage and EV inverters as well as a wide range of bidirectional power conditioning system (PCS) or can be used as a battery simulator.

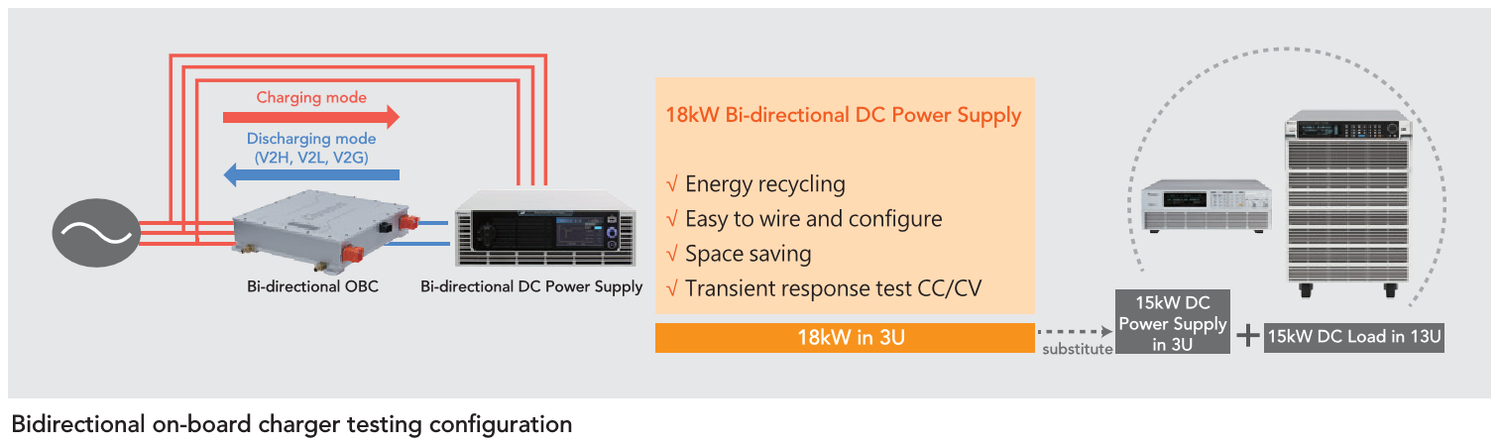

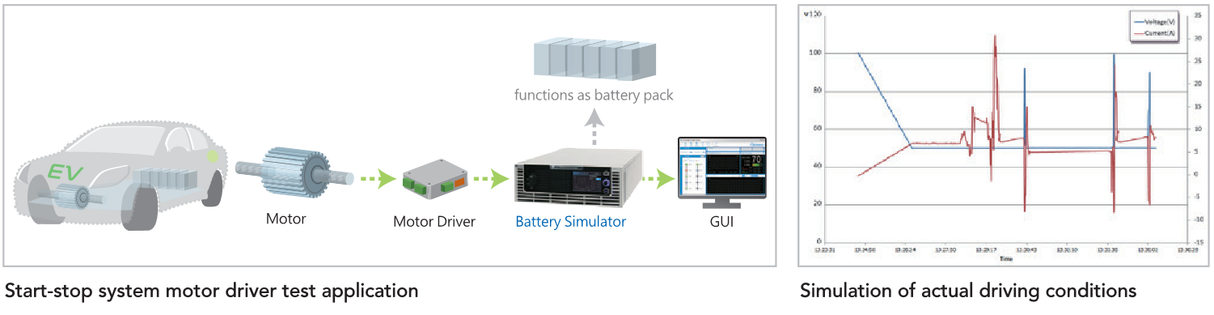

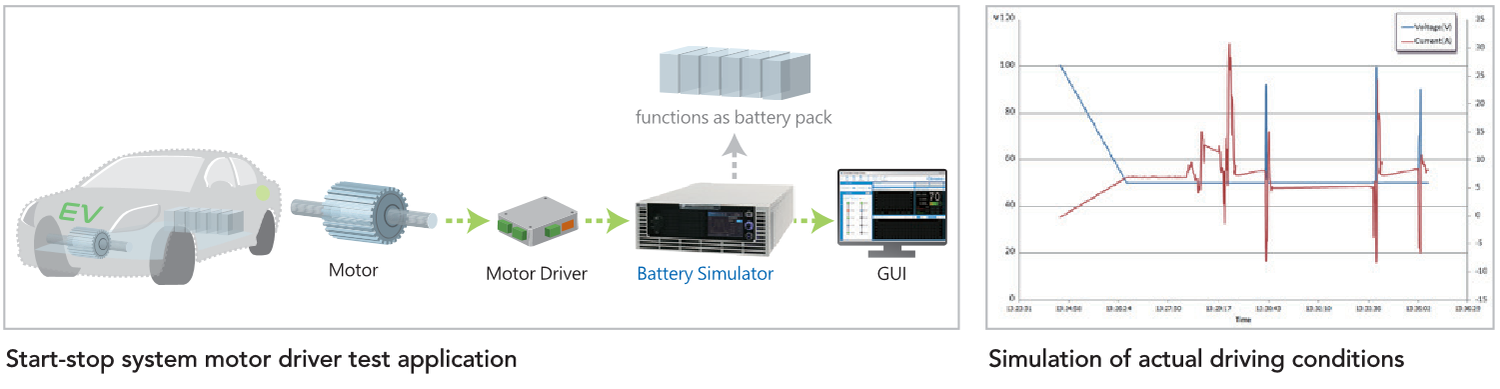

Applications are in testing power components, in electric vehicles such as bidirectional on-board chargers (BOBC), bidirectional DC converters , DC-AC motor drivers and can perform power conversion tests of Li-ion batteries in charge and discharge

Model

Description
MODEL 62180D-600
Output Power 18kW
Output Voltage 1 - 600 V
Output Current 1 - 120 A


Features
  • Output Power : 6kW/12kW/18kW
  • Output Voltage : 0~100V/600V/1200V/1800V
  • Current : 0~540A

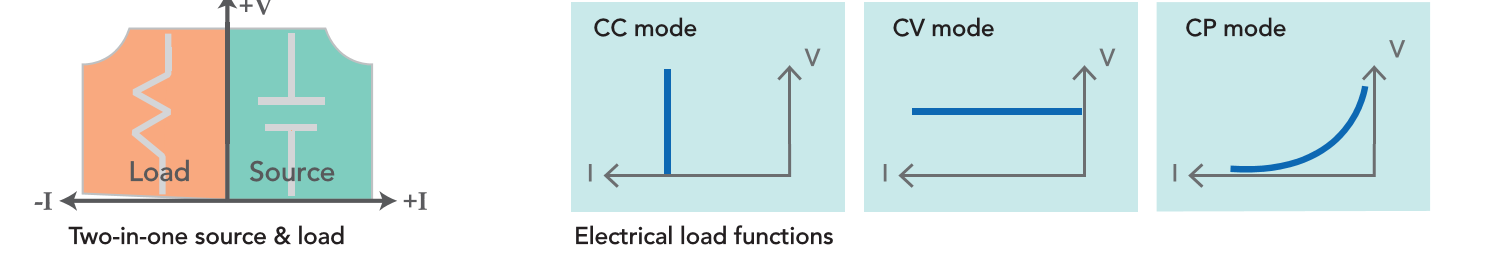

  • Two-quadrant operation : source and load
  • High power density : 18kW in 3U
  • Parallel & series master/slave operations up to 180kW
  • Wide combination of voltages and currents with constant power

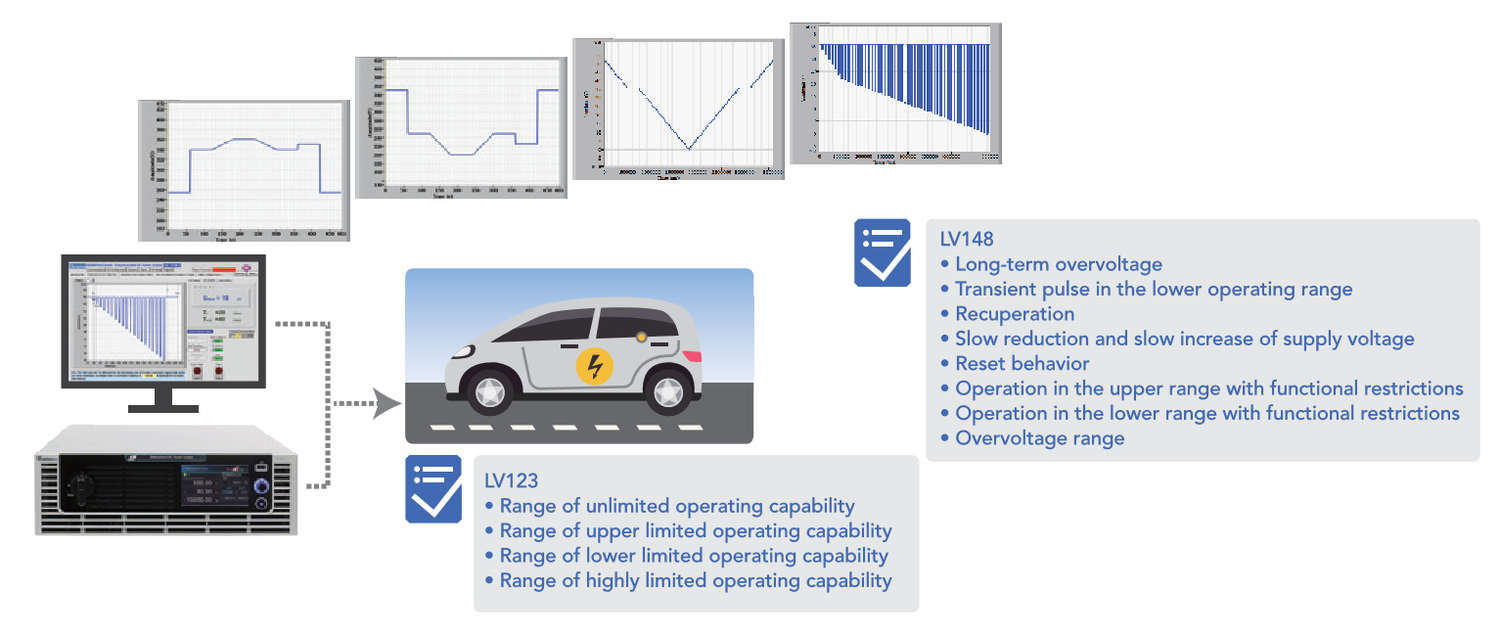

  • Auto sequencing programming
  • Slew rate controls for voltage and current
  • Transient response <1.5ms
  • Very low noise and ripple

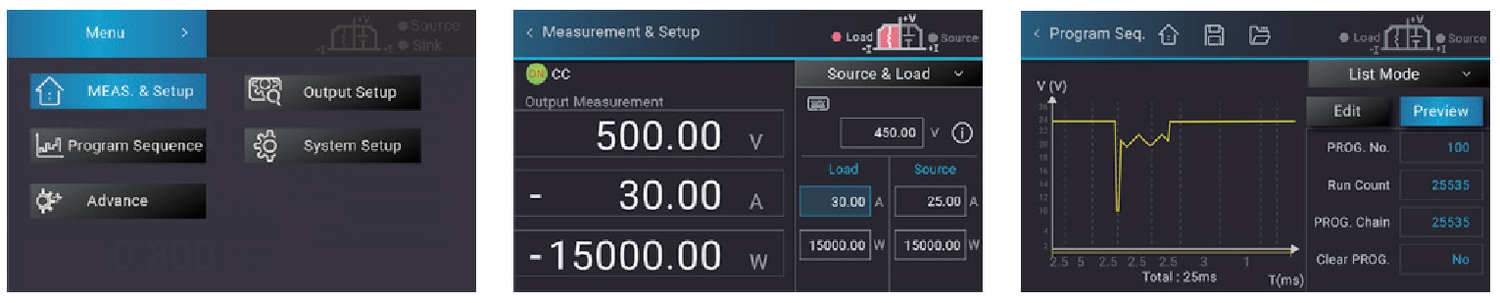

  • Easy and intuitive touch screen control
  • USB/LAN/APG interfaces standard, CAN/GPIB optional
