Chroma  |  SKU: chr63210A-150-1000

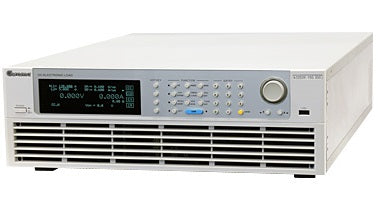

Chroma 63210A-150-1000 150V/1000A/10kW DC programmable load (7U)

The Chroma 63200A series of high-power DC electronic loads features a wide voltage range (up to 1200V), power from 3kW to 24kW, and maximum current up to 2000A for the single unit.
It is also possible to parallelize multiple units up to a maximum power of 240kW.

They feature high power density (6kW @4U) and exceptional accuracy. Control can be done manually or remotely via the appropriate interfaces.

Description

Features
  • Voltage range: 150V, 600V, 1200V
  • Current range: up to 2000A per single unit
  • Power range: 3kW to 24kW, with multiple units in parallel (up to a maximum of 10 units) up to 240kW

Functions:

  • Operating modes: DC (constant current), CP (constant power), CV (constant voltage), CR (constant resistance)
  • Composite operating modes: CR+CV, CR+CC, CC+CV
  • Synchronous handling of static and dynamic loads.
  • Voltage (0.015% + 0.015% F.S.) and current (0.04% + 0.04% F.S.) measurement accuracy.
  • Dynamic frequency sweep function.
  • Available protections: overload, overheat, overcurrent and overvoltage signaling.
  • CZ mode for testing the load capacity of the power supply at power-on
  • Smart Fan Control system for fan noise reduction.
    Interfaces: USB (standard), LAN and GPIB (optional)
