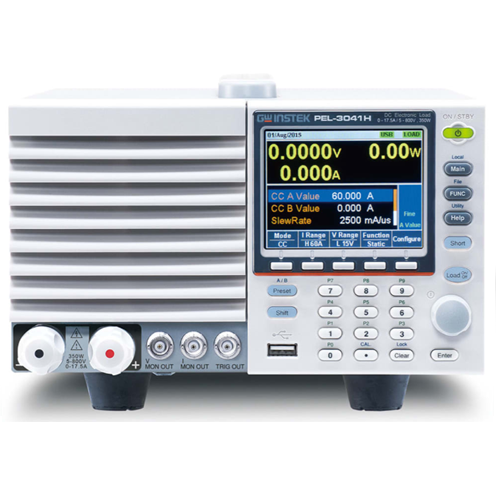

GW-Instek PEL-3041AH DC Programmable Load (17.5A/ 800V/ 350W)

The PEL-3000A series, a single-channel, programmable D.C. electronic load with 0.01 mA current resolution and 16 A/μs current Slew Rate, is very ideal for testing SPS (Switching Power Supply) for commercial and industrial computers. For a heavy-duty device like cloud ecosystem running 24-hour nonstop operations, a stable and high-power power supply, ranging from 175 W to 1050 W, is required to maintain the normal operation of server, Hub, and the equipment of data storage and internet communications.
Owing to the increasing demand of data transmission and large scale data storage of telecommunications systems, the infrastructure of internet communications is in the pace of rapid expansion. This has greatly boosted the market demand of telecommunications equipment powered by power supply of 2000 W and above. The flexible power combination of PEL-3000A meets the test requirements of present high-power power supply.
The PEL-3000AH programmable DC Electronic load, which not only inherited functions and features from the PEL-3000A series but providing three current ranges for all PEL-3000AH series and adding voltage monitor BNC terminals on the front panel. The PEL-3000AH series, a single-channel, programmable D.C. electronic load with 800 V and 0.84 A/μs current Slew Rate, is ideal for the test of the high voltage devices such as the EV & HEV in-vehicle chargers, DC/DC converters or high-voltage batteries.
