Rigol  |  SKU: DP711

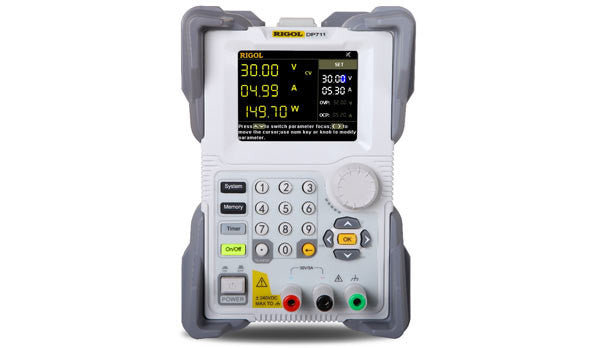

Rigol DP711

€309,00
Tax included Shipping calculated at checkout.

DP700 series power supply is a type of affordable programmable linear DC power supply with high performance. With superb performance specifications, pure and reliable output, and clear user interface, the DP700 series supports timing output and trigger function, and provides a remote communication interface, enabling you to meet your diversified test requirements.



Model

Description

Model

DP711

Channels

1

Voltage/current

0 V to 30 V/0 A to 5 A

Load Regulation, ±(% of Output + Offset)

<0.01% + 2 mV

Line Regulation, ±(% of Output + Offset)

<0.01% + 2 mV

Normal Mode Voltage

<500 μVrms/3 mVpp

Normal Mode Current

<2 mArms

Annual Accuracy[1] (25°C ± 5°C), ±(% of Output + Offset)

Programming - Voltage

0.05% + 20 mV

Programming - Current

0.2% + 10 mA

Readback - Voltage

0.05% + 20 mV

Readback - Current

0.2% + 20 mA

Resolution

Programming - Voltage

Standard: 10 mV High resolution option installed: 1 mV

Programming - Current

Standard: 10 mA High resolution option installed: 1 mA

Readback - Voltage

Standard: 10 mV High resolution option installed: 1 mV

Readback - Current

Standard: 10 mA High resolution option installed: 1 mA

Display - Voltage

Standard: 10 mV High resolution option installed: 1 mV

Display - Current

Standard: 10 mA High resolution option installed: 1 mA

Transient Response Time

Less than 50 μs for output voltage to recover to within 15 mV following a change in output current from full load to half load (or from half load to full load)

Command Processing Time

<100 ms

Interface

RS-232

Features

Programmable linear power supply, maximum power 150W, single output, 30V 5A.

  • DP711: single output, 30 V/5 A, total power up to 150 W
  • DP712: single output, 50 V/3 A, total power up to 150 W
  • Low ripple and noise:
    DP711: <500 μVrms/3 mVpp; <2 mArms
    DP712: <500 μVrms/4 mVpp; <2 mArms
  • Excellent load and line regulation rate: <0.01% + 2 mV; <0.01% + 2 mA
  • Transient response time: <50 μs
  • 1 mV/1 mA resolution (optional)
  • Sound overvoltage/overcurrent/overtemperature protection, with the response time for the overvoltage protection less than 10 ms
  • External trigger function supported, enabling synchronous output for multiple devices
  • Timing output supported (10 ms to 99999 s) for up to 2,048 groups
  • 3.5-inch TFT-LCD; compact and elegant; easy to use
  • Front panel locking and any specified key locking supported
  • RS232 interface communication supported
