Rigol  |  SKU: DP813

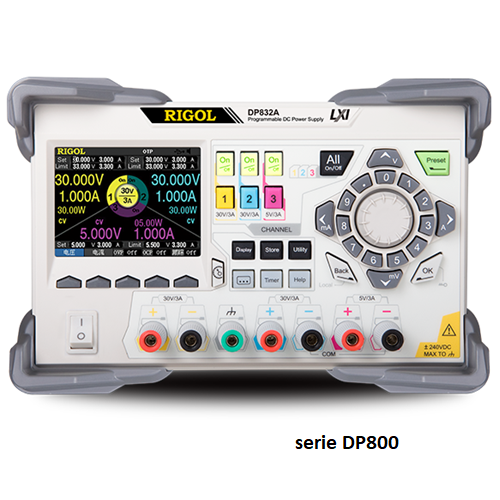

Rigol DP813

€569,00
Tax included Shipping calculated at checkout.

DP813A/DP813: 1 output, 8V/20A (Low Range), 20V/10A (High Range), with remote Sense, total power up to 200W

Differences between +A and Non-A models:

  • Support for multiple advanced functions: timer output and delay (are standard for all models), while recorder/analyzer/monitor/trigger functions (are standard for "+A" models and optional for other models)
  • Support for various interfaces: USB Host&Device (standard for all models ), USB-GPIB (optional for all models ), LAN/RS232/Digital IO (standard for "+A" models and optional for other models)
  • The +A and Non-A models also differ in the values of some specifications , refer to the values in the datasheet.

Model

Description
Model DP813
Channels 1
Range 1

0 to 8V/0 to 20A
Range 2

0 to 20V/0 to 10A
Low ripple and noise
Normal mode voltage <350uVrms/3mVpp
Normal mode current <2mArms

Features

- Excellent linear and load adjustment ratio
- Fast transient response time: <50us
- Standard OVP/OCP/OTP protection functions
- Standard timing output
- Built-in V,A,W measurements and waveform display
- Independent control for each channel
- 3.5-inch TFT display

Manuals

DP800_datasheet

DP800_programming_manual

DP800_user_manual
