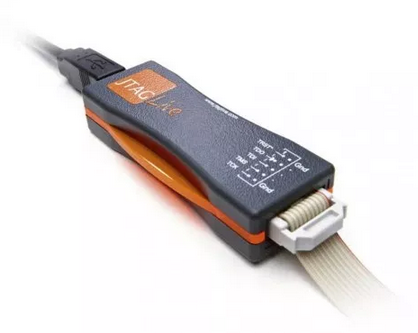

Jtag Technologies: JTAG LIVE boundary scan controller

The JTAG Live Controller is connected and powered via the USB port only.It offers a single TAP port ( IEEE 1149.1 standard ) whose pin-out is the standard one adopted by the parent company ( Jtag technologies ).The TCK is programmable up to a maximum frequency of 6MHz , the output voltage level as well as the threshold of input levels is programmable.

Description

















    Features
    • Low-cost boundary-scan controller
    • Easy to use
    • Lightweight and pocket-sized
    • Compatible with both JTAGLIVE and PROVISION software ( both products of Jtag Technologies )

    JTAGLive Boundary Scan Controller
    for testing, PLD programming and small FLASH programming applications:
    - 1 TAP
    programmable output voltage from 1.5 V to 3.6 V in steps of 0.1V
    programmable input threshold from 0 V to 4.1 V in steps of 0.1 V
    - Powered from USB bus
    - Compatible with USB 2.0 full speed (12 Mbit/s)
    - Programmable burst TCK: 100 Hz - 6 MHz
    - 1 TAP cables 10 pins standard pitch (0.1")
    - Scan Function Library

    Manuals

    Jtag live controller datasheet

    Jtag live overview
