M+P  |  SKU: Vibrunner

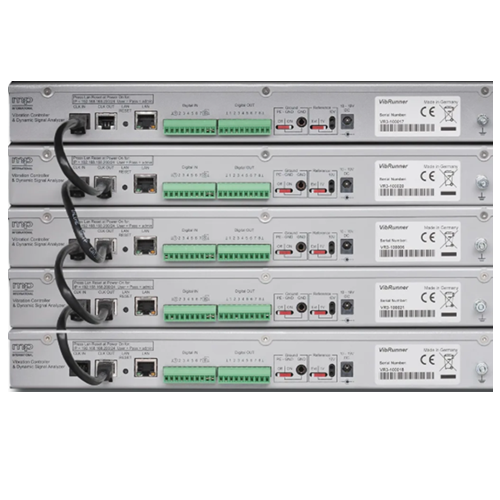

M+P: VibRunner

m+p VibRunner is m+p international‘s measurement hardware platform for higher channel counts, designed for the specific needs of noise and vibration engineering and general data acquisition. It can be used with m+p international’s provenm+p Analyzerfor noise and vibration measurement,m+p VibControlfor vibration control andm+p Codafor data acquisition and condition monitoring. This solution-oriented approach provides superb performance at an excellent price-performance ratio.

Description

Applications
-Vibration control on electrodynamic and hydraulic shakers, all test modes supported
-Multi-axis vibration testing
-Multi-channel, high-end vibration testing
-Pyro-shock capture
-Data reduction and time data recording (throughput to disk) in aerospace
-Vibration monitoring and overtest protection
-Noise and vibration measurement
-Structural testing, modal analysis, impact testing
-Ultrasonic measurements
-Sonar
-Data acquisition and condition monitoring
-Strain measurements
-Test stand engineering

Features

m+p VibRunner Measurement Hardware for Noise and Vibration Engineering and Data Acquisition

  • Desktop instrument or 19” rack-mounted system, 1U high, 3 slots for modules, rugged steel frame
  • Silent operation, temperature-controlled fan
  • Multi-range AC power supply and DC power supply
  • Precise synchronization of multiple m+p VibRunner frontends by means of daisy chain connection and master clock
  • Ethernet interface, 1 Gbit/s transfer rate
  • Separate, secure subnet independent from other networks
  • DSP powered real-time processing
  • 8-24 analog input channels per m+p VibRunner, 24 bits, 204.8 kHz max. sampling rate per channel, differential and single-ended measurements
  • TEDS support
  • IEPE support
  • 8-channel bridge measurement module
  • 2-12 differential source output channels per m+p VibRunner, 24 bits, safety shutdown
  • 2-12 tacho inputs per m+p VibRunner for rotating machinery applications
  • 8 digital inputs and 8 digital outputs for combined environmental tests or parallel functional tests

Applications
-Vibration control on electrodynamic and hydraulic shakers, all test modes supported
-Multi-axis vibration testing
-Multi-channel, high-end vibration testing
-Pyro-shock capture
-Data reduction and time data recording (throughput to disk) in aerospace
-Vibration monitoring and overtest protection
-Noise and vibration measurement
-Structural testing, modal analysis, impact testing
-Ultrasonic measurements
-Sonar
-Data acquisition and condition monitoring
-Strain measurements
-Test stand engineering
