The DAQ-9600 data acquisition system is a modularized system with high flexibility and high performance. The mainframe is equipped with 3 slots for modules . The 6 1/2 precision digital DMM integrated mello instrument is the focus of testing and measurement. Five modules are available to meet different measurement needs. These features make the test as a whole easier, faster , more effective, and more reliable. These are the reasons why DAQ-9600 is used in the research and development of product characteristic analysis , or used for the production of system testing or fault diagnosis.
The modular structure of the DAQ-9600 provides 3 module slots and 5 optional modules, including general-purpose modules (DAQ-900/DAQ-901), multifunction module (DAQ-903), matrix module (DAQ-904), and high-voltage, high-current module (DAQ-909). Users can combine and match arbitrarily according to their measurement needs. The DMM is integrated and does not occupy any slot of the three available.
The DAQ-9600 features a 4.3-inch color graphic display and a restrained function key design. This allows users to quickly and easily configure the module channels intuitively. Measurement data are provided in various formats such as numerical values, bar graphs, trend graphs and histograms to quickly check measurement results. At the same time, the DAQ-9600 can convert 14 input signals, including temperature (RTD/thermocouple/thermistor), voltage (AC/DC), current (AC/DC), resistance (two-wire/four-wire), strain (direct/bridge), frequency/period, and capacitance. The built-in 6 1/2 digital DMM provides a basic accuracy of 0.0035% DC voltage, 0.05% AC voltage and 0.01% resistance within a one-year calibration cycle.

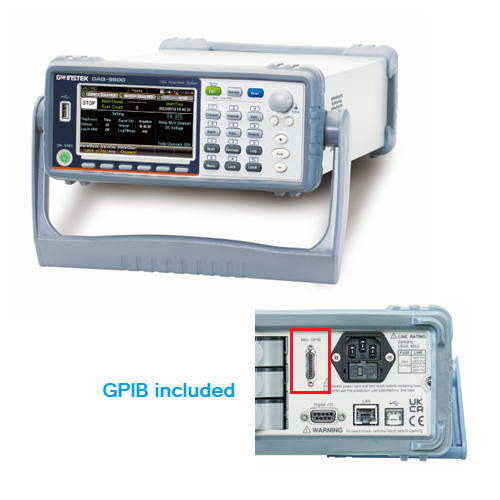

The DAQ-9600 supports measurement data storage, and the acquired data can be stored in the internal memory or recorded directly to a USB flash drive without connecting to a PC. For remote setup and control of data logging applications, the DAQ-9600 is equipped with LAN, RS232C, USB and GPIB (optional) and provides free DAQ-Data Logger software to simplify data collection and analysis, allowing users to easily collect data. In addition, the LAN interface can be used to configure measurements, define and execute scan lists via common Web browsers (such as Chrome, IE). Users can monitor measurement results wherever they are as long as they are connected to the Internet. The DAQ-9600 can fully meet the demand for data acquisition. The DAQ-9600 is definitely a perfect combination of price and test and measurement performance.
