Rigol  |  SKU: DSA832E-TG

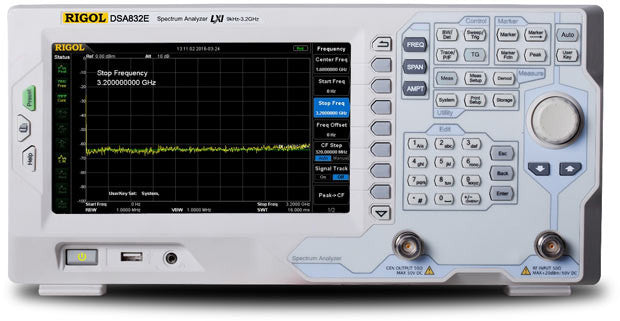

Rigol DSA832E-TG 9kHz - 3.2GHz spectrum analyzer (tracking generator)

Ultra-compact and lightweight spectrum analyzer with excellent performance. Digital IF(intermediate frequency) technology ensures reliability and performance to meet most RF applications.
Large high-resolution display, vast number of functions for wide use and maximum flexibility.

3.2GHz tracking generator included.

Description



DSA832E-TG

Frequency

Frequency Range

9 kHz to 3.2 GHz

Frequency Resolution

1 Hz

SSB Phase Noise

20° to 30°, fc=1GHz

Carrier Offset

10kHz

<-90dBc/Hz

Bandwidths

Resolution Bandwidth (-3dB)

10 Hz to 1 MHz, in 1-3-10 sequence

Displayed Average Noise Level(DANL)

0 dB RF Attenuation, RBW=VBW=10Hz, Sample Detector, Trace Average ≥ 50, Tracking generator OFF, 20° to 30° ,input terminated 50Ω, PA On



<-148dBm (typ.)

<-130dBm (typ.) with PA OFF



Features

DSA800 Series Features

● All-Digital IF Technology
● Frequency Range from 9 kHz up to 7.5 GHz
● Min. -161 dBm Displayed Average Noise Level (Typ.)
● Min. < -98 dBc/Hz @ 10 kHz Offset Phase Noise
● Level Measurement Uncertainty < 0.8 dB
● 10 Hz Minimum Resolution Bandwidth
● Up to 7.5 GHz Tracking Generator (DSA8XX/E-TG)
● Advanced Measurement Functions (Opt.)
● EMI Filter & Quasi-Peak Detector Kit (Opt.)
● VSWR Measurement Kit (Opt.)
● PC Software (Opt.)
● Optional RF TX/RX Training Kit
● Optional RF Accessories (Cable, Adaptor, Attenuator, Bridge ...)
● Complete Connectivity: LAN (LXI), USB Host & Device, GPIB (Opt.)
● 8 Inch WVGA (800x480) Display
● Compact Size, Light Weight Design

Manuals

Datasheet DSA800 series

DSA800 series UserGuide
