Rigol  |  SKU: DSG3136B
20% off

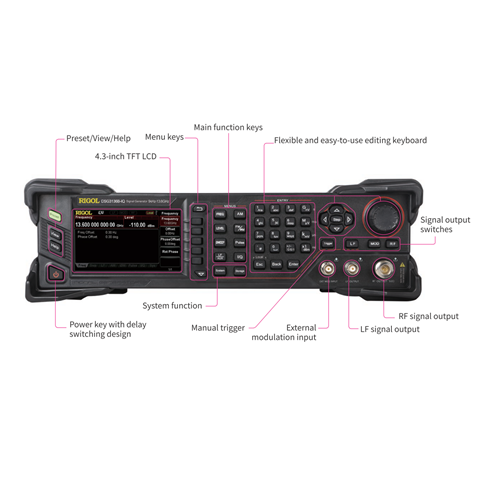

Rigol DSG3136B 13.6GHz RF Generator

Rigol PUG PromotionGet the DSG3000-PUG option for free with the purchase of a new device.
(Valid until June 30, 2026)

RF signal generator excellent features and excellent price/performance ratio. Bandwidth from 9kHz to 13.6GHz, AM/FM/ØM/Pulse modulation

Only for model-IQ is hdw I / Q Modulation and Baseband Outputoption provided .DSG3000 series devices support standard I / Q modulation with internal and external modulation sources. They feature a built-in programmable baseband generator for the modulating signal (internal source) and two inputs for the I and Q components if "external source" is selected. In addition, baseband outputs (I and Q) are also available on the rear panel of the device. Note: This option is not upgradeable.



Description

Rigol PUG Promotion
Get the DSG3000B-PUG option for free with the purchase of a new device.
(Valid until June 30, 2026)

Model

DSG3136B

Max. Frequency

9 kHz to 13.6 GHz
Amplitude Accuracy <0.5dB (typical)

Output amplitude range

-130 dBm to +27 dBm

High signal purity, phase noise

<-116dBc/Hz@20kHz (typical)

Standard 1ppm internal clock

optional 5 ppb high stable clock

Analog modulation

Standard AM/FM/ΦM
pulse modulation Supported; on/off ratio up to 70 dB;
pulse train generator user defined
modulation I/Q modulation and I/Q baseband output. All modulations support internal and external modulation modes
rack mount kit available
interfaces Standard USB/LAN/GPIB remote control interfaces
command set SCPI command set supported
design Standard 2U height design to save rack space; rack mount kit is available
Wear-free electronic attenuator design
Well-designed automatic flatness calibration function
(Cables, attenuators, amplifiers and so on) for test
system with power meter control

































Features
  • Highest frequency: 6.5 GHz/13.6 GHz
  • Amplitude accuracy: <0.5 dB (typical)
  • Output amplitude range: -130 dBm to +27 dBm (setting range)
  • High signal purity, phase noise: <-116 dBc/Hz@20 kHz (typical)
  • Standard 1 ppm internal clock; optional 5 ppb high stable clock
  • Standard AM/FM/ΦM analog modulation
  • Support pulse modulation; on/off ratio up to 70 dB; user-defined pulse train generator
  • I/Q modulation and I/Q baseband output
  • All modulations support internal and external modulation modes
  • Standard 2U height design to save rack space; rack mount kit is available
  • Support USB/LAN/GPIB remote control; SCPI command set
  • Wear-free electronic attenuator design

Manuals

DSG3000B_datasheet
