Rigol DSG5128 RF Generator 8-CH Microwave Signal Generator, 9 kHz to 12 GHz

The DSG5000 series microwave signal generator is a multi-channel phase-coded microwave signal generator , with frequency up to 20 GHz and output level from -30 dBm to +25 dBm. The DSG5000 series includes models with 2, 4, 6 or 8 channels. With its high channel-to-channel phase stability, the DSG5000 can meet the needs of customers who need to apply multichannel coherent signals. The DSG5000 has low phase noise and excellent spurious specifications.In addition to 'high clock stability (OCXO option) the DSG5000 has AM, FM, PM and Pulse modulation functions that can be widely used in R&D, production, maintenance, education and training scenarios.

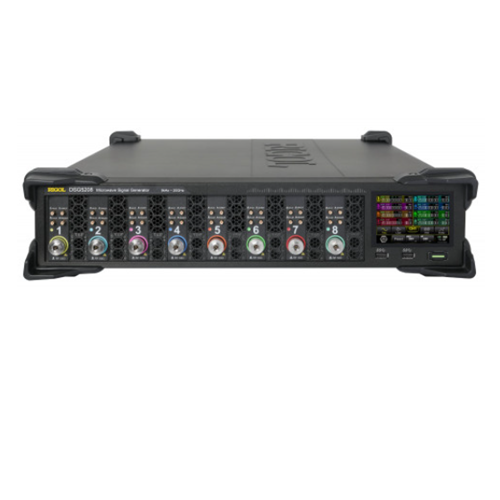

note: the 'product image is for model DSG5208



Description

Model

DSG5128

Frequency range

9 kHz to 12 GHz
Frequency resolution 0.01 Hz

Output level setting range

-30 dBm to +25 dBm

Amplitude resolution

0.01 dB

Phase noise

-133 dBc/Hz@10 kHz, carrier waveform 1 GHz (typ.)

Full-scale accuracy

0.7 dB (typ.)
Switchover time 3 ms (typ.)
Channel-to-channel phase stability <1°@10 GHz
Channel-to-channel isolation > 80 dB (typ.)
Spurious harmonics <-50 dBc@10 GHz
Modulation type AM, FM, PM, and Pulse
Communication interface USB and LAN
Number of channels 8
Structure dimensions 2U height, full-rack width
