Rigol  |  SKU: DSG836

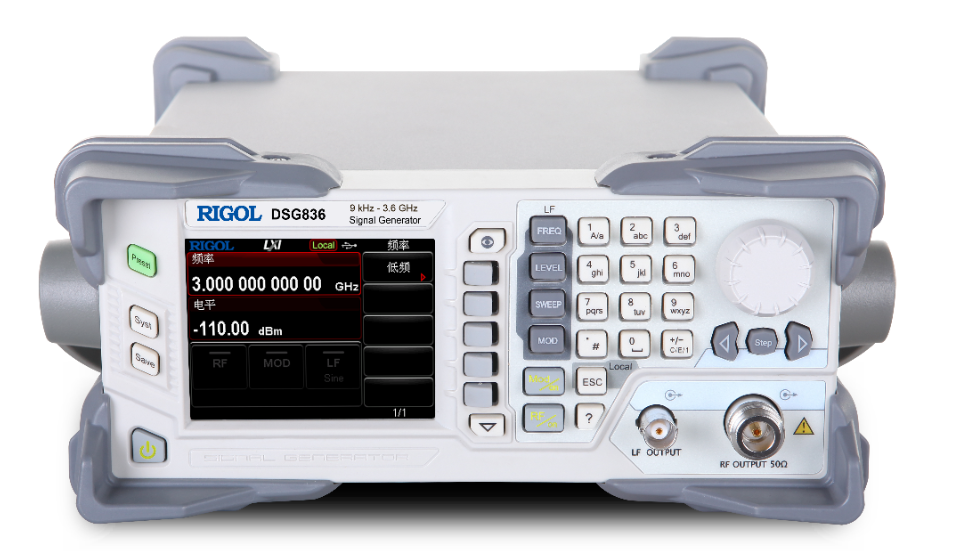

Rigol DSG836 3.6GHz RF Generator

Excellent value for money RF signal generator.

Bandwidth from 9kHz to 3.6GHz, AM, FM, phase and pulse modulation.



Description

Model

DSG836

Frequency

9kHz to 3.6GHz

Phase Noise (typical)

Up to -112 dBc/Hz

Amplitude Accuracy

Higher level up to 0.5 dB (typical)

Connectivity

LXI-C, USB

Modulation

Complete AM/FM/ØM analog modulation functions
I/Q Modulation only available for DSG821A and DSG836A
I/Q Baseband Generator only available for DSG821A and DSG836A

Pulse Train Generator , Pulse Modulation , Pulse Generator

Option

High Stable Reference Clock

Option

























Features

Highly cost-effective economical RF signal generator

  • Up to -105 dBc/Hz (typical) phase noise
  • Up to +20 dBm (typical) maximum output power
  • Higher level of amplitude accuracy, up to 0.5 dB (typical)
  • Superb signal stability

Functions almost matching those of high-level RF signal generators

  • Flexible frequency and amplitude sweep functions
  • Complete AM/FM/ØM analog modulation functions
  • Standard LF output function
  • Powerful pulse modulation function
  • System flatness calibration function
  • Simple and easy to operate

Special design ensuring its reliability and durability

  • Use electronic attenuator to avoid wearing
  • Specially designed protection functions
  • Digital ALC circuit
  • Simple structure

Smallest in size among the like products

  • Occupy the least workbench space
  • Occupy less rack space
  • Light weight; the handle offers comfortable grip

Manuals

Datasheet DSG800 Series

DSG800 Series UserGuide
