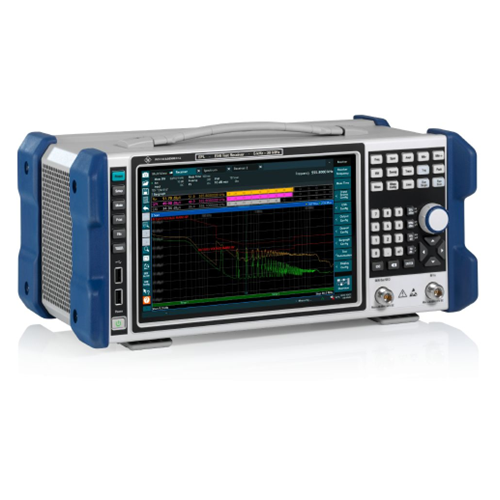

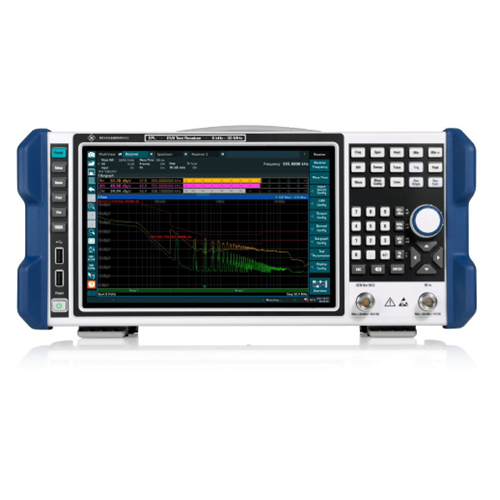

R&S® EPL1000 5kHz to 30MHz EMI Test Receiver Compliant with CISPR 16-1-1

The R&S®EPL1000 is the perfect device for fast, accurate and compliant EMI measurements up to 30 MHz.

The R&S®EPL1000 is fully compliant with the CISPR 16-1-1 standard. With the additional capabilities of a spectrum analyzer and with a signal generator and tracking , the R&S®EPL1000 is the ideal instrument for a wide variety of laboratory applications. With its extremely fast time domain scanning, the R&S®EPL1000 can check all frequencies of a CISPR A and B band in one shot so that measurements can be made quickly and with great frequency. Finally, frequency segments can be monitored without interruption or extended over periods of time. Built-in preselection ensures a high dynamic range and allows 'acquisition of short pulses. For detailed signal analysis, the R&S®EPL1000 offers a spectrogram and IF analysis function.

With the optional integrated signal generator that includes the tracking generator function the component transfer functions used in the miincluded at
tracking generator function, the transfer functions of the communications
Components used in measurements can be quickly and easily
determined, without an additional device.

Key Features.

Key Features:
- Preselection filters (Preselection filters)
- Time domain scan (Time domain scan)
- Tracking generator (Tracking generator)
- Battery operation (Battery operation)
- Pulse protected input (Pulse protected input)
