Et System LAB/SMP_215

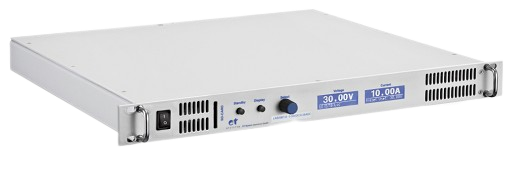

LAB/SMP are adjustable 19" voltage sources in the power range from 750W to 2.4kW in a compact design of 1U and 2U. Et System as a developer and manufacturer can also implement your individual wishes in addition to our standard device.

Examples of available models ( configurations are also developed on request ) :

Key Features LAB/SMP series:
- 750 W to 2.4 kW
- Output voltages up to 1,200 V
- Output currents up to 160 A
- Quiet operation, ensuring that it is pleasant to work within the vicinity of the unit
- Very easy to control via front panel
- Information via graphic display
- Constant voltage, current, resistance, power operation and simulation of PV arrays
- Create any type of voltage or current curve via memory card or digital interface (sequential operation)
- Script operation, in conjunction with the Datalog function, enables an independent stand-alone test field to be set up
- Standard integrated ATI 5/10 galvanically isolated analogue interface: 0 – 5 V or 0 – 10 V (user selectable) and RS232, soft interlock
- Filter functions which can be adjusted for analogue interface
- Digital interfaces IEEE488, RS485, USB and LAN (optional)
- SD card slot (optional)
- Datalog function: Current operating values are saved to the memory card at adjustable time intervals, SD card (optional)
- Voltage rise time and current rise time (U and I slopes) are adjustable
- Umax and Imax can be set by the user in order to limit output voltage or output current
- A switch-off time can be set for the unit once the start button has been pressed
- Create U/I output characteristics which can be saved (e.g. for PV-Sim, shading)
- “High speed” optional The secondary rise and fall time for the DC output voltage is reduced by a factor of 10 compared to standard times,on average.
- Autorange optional down to 33%
- OVP, OTP, UVP and OCP protective functions
- Special versions available on request
