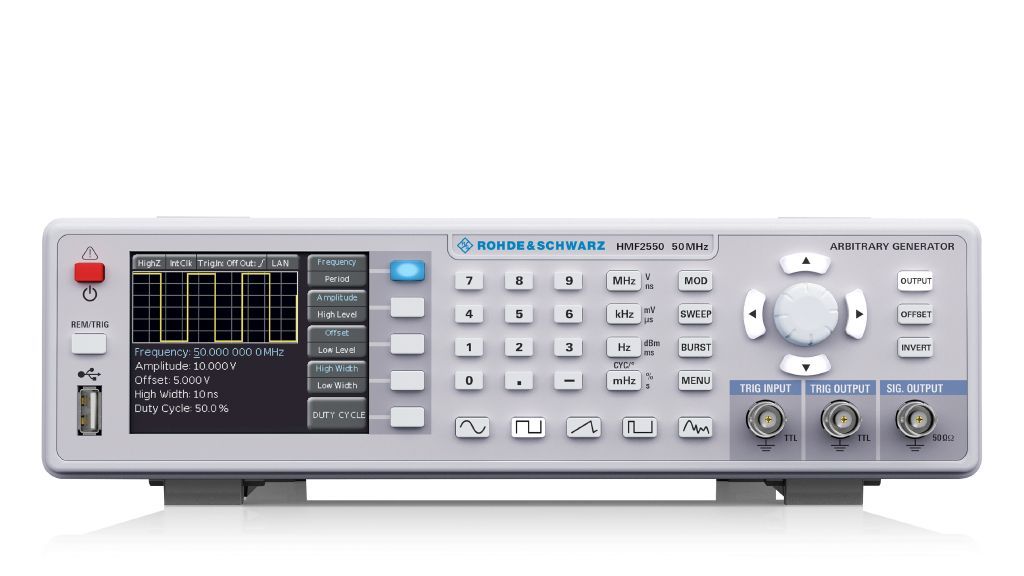

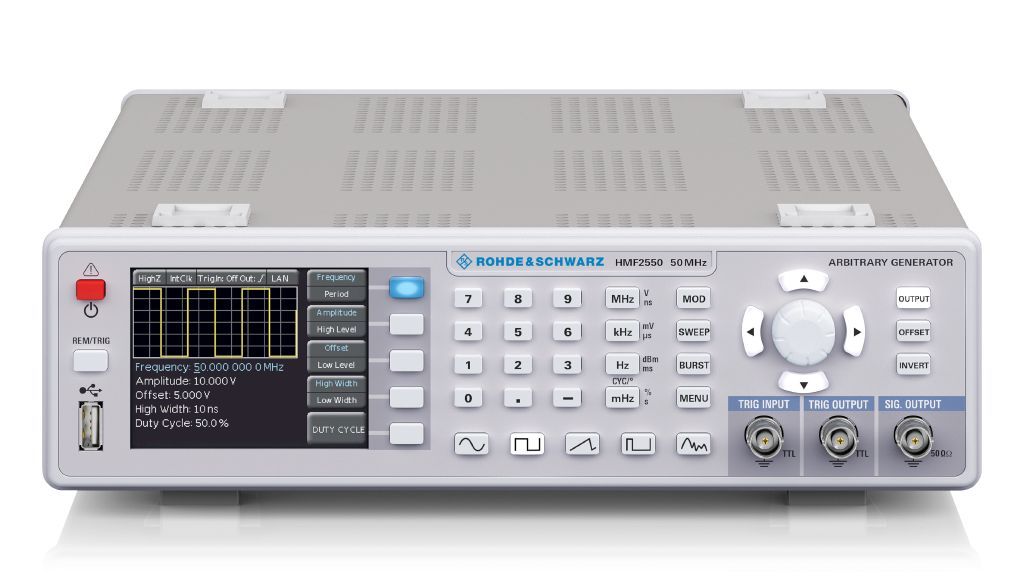

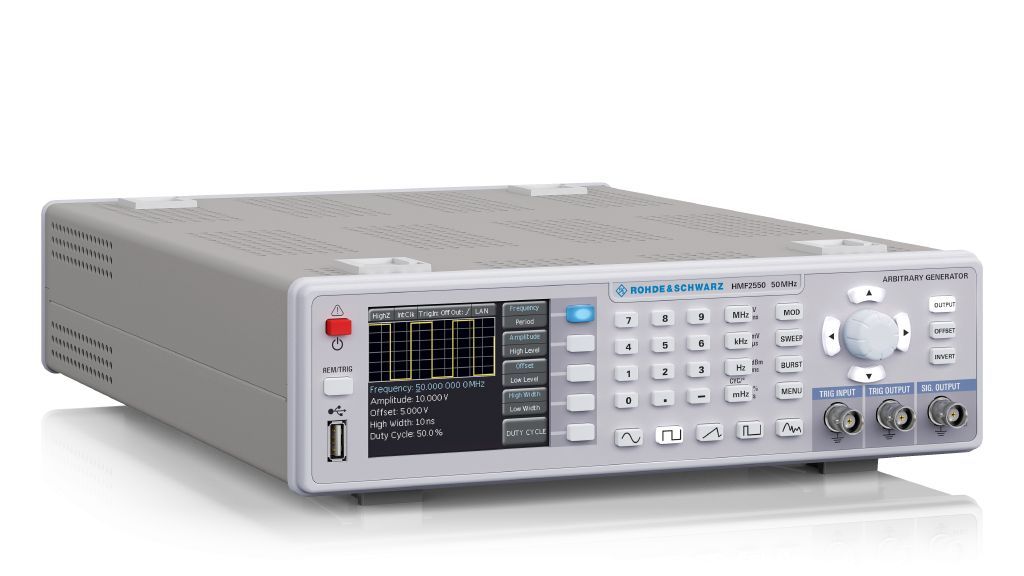

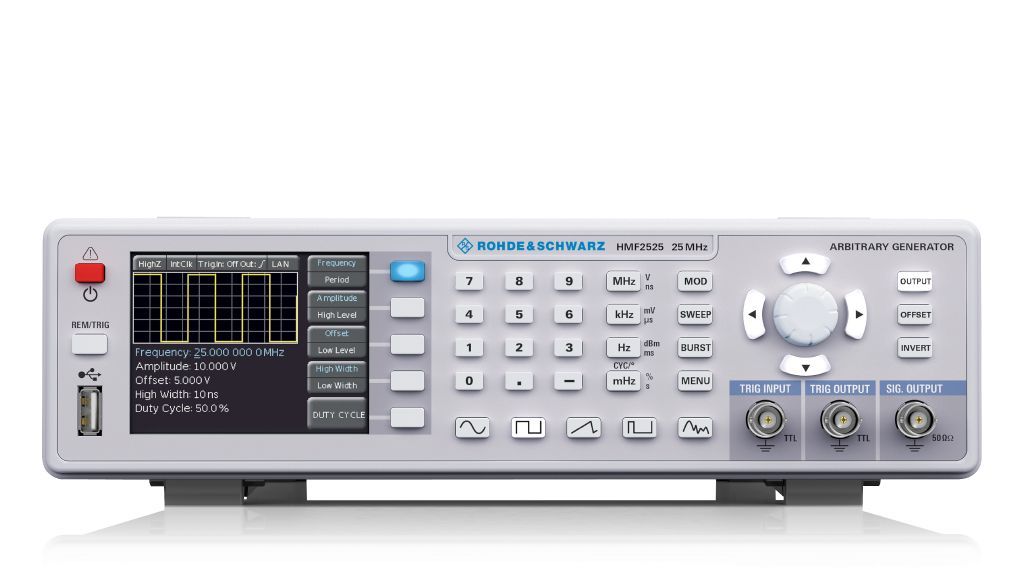

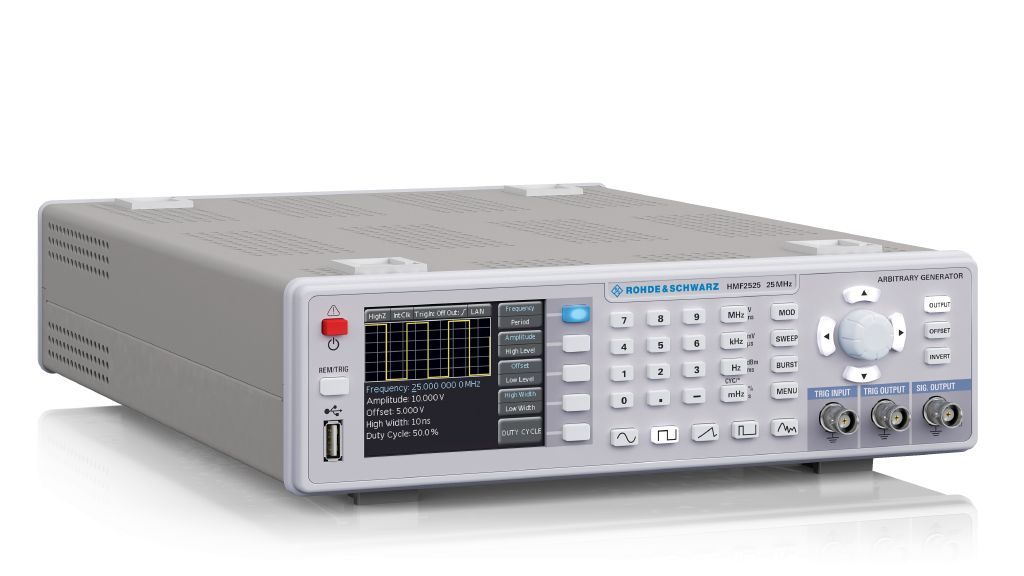

R&S® HMF2550 Function Generator

Accurate, versatile, affordable generator

High-performance precision generator designed for research and development laboratories, universities, test and production facilities as well as service operations. This is an arbitrary function/waveform generator with the largest arbitrary memory size in its class. This product combines the ability to generate any arbitrary waveform with characteristics of high accuracy and precision. Arbitrary waveforms have 14-bit amplitude resolution, 250MSa/s sampling rate and up to 256kPts length. Additional features such as FM, PM, PWM, internal or external FSK modulation make this generator suitable for a wide range of applications, including electronics design, sensor simulation, testing.

Features

• Frequency range 10 uHz...50 MHz
• Output voltage 5 mVpp...10 Vpp (in 50 ohms) DC offset ±5 mV...5 V
• Arbitrary waveform generator: 250 MSa/s, 14 Bit, 256 kPts
• Arbitrary waveforms, sine, square, pulse, triangle, ramps including standard curves (white noise, cardiac, etc.)
• Total harmonic distortion 0.04% (f <100 kHz)
• Burst, Sweep, Gating, External Trigger
• Rise time <8 ns, in pulse mode 8...500 ns variable-time edge
• Pulse mode: frequency range 100 uHz...12.5 MHz (25 MHz), pulse width 15 ns...999 s, resolution 5 ns
• Modulation modes AM, FM, PM, PWM, FSK (int. and ext.)
• 10 MHz time base: ±1 ppm TCXO, rear BNC I/O connector
• Front USB connector: save and recall waveforms and settings
• TFT 8.9 cm (3.5"): clear representation of waveform and all parameters
• Dual USB/RS-232 interface, Ethernet/USB optional
• Dual interface or IEEE-488 (GPIB)
