Rigol  |  SKU: DG5254 Pro

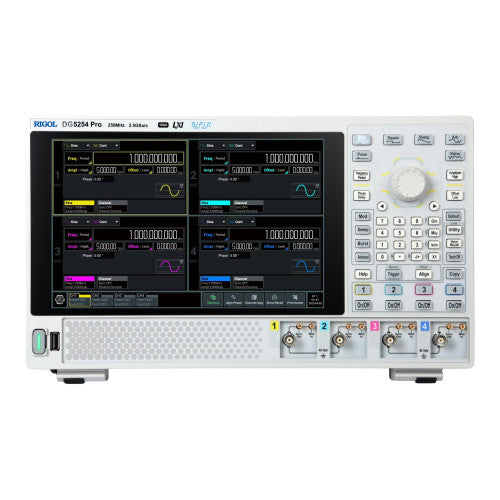

Rigol DG5254 Pro: 250 MHz bandwidth 4 CHs

With a sampling rate of up to 2.5 GSa/s and an arbitrary waveform length of 64 Mpts/CH (128 Mpts/CH optional), the DG5000 Pro Series Arbitrary Waveform/Function Generator is an all-in-one generator integrating a function generator, arbitrary waveform generator, noise generator, pulse generator, harmonic generator, and analog/digital modulator. It is a multifunctional, cost-effective, dual-channel arbitrary waveform/function generator.

Description
Model DG5254Pro
Analog Bandwidth 250 MHz
Channels
4 both isolated from the Ground
Vertical Resolution
16 bits
Sample Rate
2.5 GSa/s
Arbitrary Waveform Lenght
64 Mpts/CH (standard) , 128 Mpts/CH (optional)
Min. Rise Time
 0.8 ns
Dimensions (W×H×D)
 358 mm (W) x 215 mm (H) x 122 mm (D)





Features

Manuals

DG5000_Pro_Datasheet

DG5000_Pro_QuickGuide
