Rigol  |  SKU: SUA8104

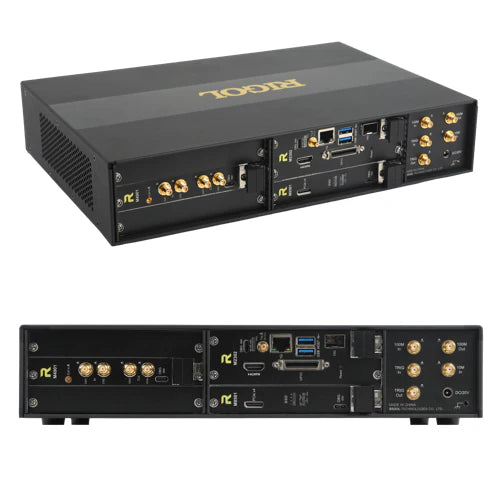

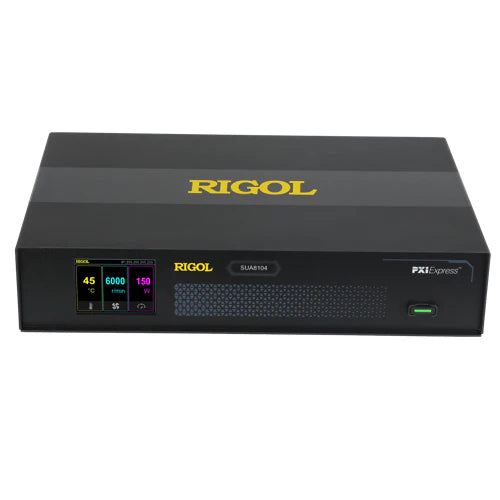

Rigol SUA8104 - 4-Channel Arbitrary Waveform Generator, 8 GSa/s, 3.5 GHz, 14-bit, CPU-Controlled

The RIGOL SUA8104 is a 4-channel arbitrary waveform generator (AWG) with master CPU control, designed for advanced testing on electronic systems, communications, and research. It offers a 3.5 GHz bandwidth, a sampling rate up to 8 GSa/s, and 14-bit vertical resolution, ensuring high-fidelity and precise signals for complex simulations and high-speed device analysis.

Description

CONTACT ALLDATA FOR QUOTATION

Model Analogic Channels T|R T|R Sampling Rate Analog Bandwidth Max Memory Depth Master Control
SUA8104 4 | 0 8 GSa/s | - 3,5 GHz 1 Gpts CPU

SUA8204



 0 | 4 - | 4 GSa/s 1,5 GHz 1 Gpts CPU
SUA8208 0 | 8 - | 4 GSa/s 1,5 GHz 512 Mpts CPU
SUA8304 2 | 2 4 GSa/s | 4 GSa/s 1,5 GHz 1 Gpts CPU
SUA8104G 4 | 0 8 GSa/s | - 3,5 GHz 1 Gpts GPU AI
SUA8204G 0 | 4 - | 4 GSa/s 1,5 GHz 1 Gpts GPU AI
SUA8208G 0 | 8 - | 4 GSa/s 1,5 GHz 512 Mpts GPU AI
SUA8304G 2 | 2 4 GSa/s | 4 GSa/s 1,5 GHz 1 Gpts GPU AI

Features
  • 4 independent AWG channels
  • Bandwidth: 3.5 GHz
  • Sampling rate: 8 GSa/s
  • Vertical resolution: 14 bits
  • Master CPU control for management and automation

Manuals

SUA8000-DataSheet

SUA8000_QuickGuide
