Rigol  |  SKU: SUA8208

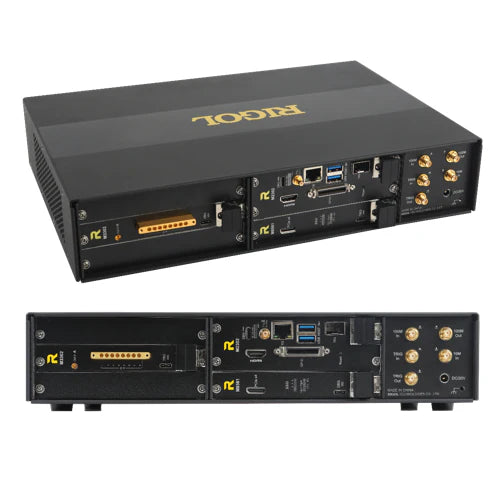

Rigol SUA8208 - 8-Channel Digitizer, 4 GSa/s, 1.5 GHz, 14-bit, CPU-Controlled

The RIGOL SUA8208 is an 8-channel digitizer with master CPU control, designed for multi-signal applications and parallel testing. With a 1.5 GHz bandwidth, a 4 GSa/s sampling rate, and 14-bit resolution, it allows for simultaneous acquisition of complex signals on multiple channels, making it ideal for embedded systems and hardware validation.

Description

CONTACT ALLDATA FOR QUOTATION

Model Analogic Channels T|R T|R Sampling Rate Analog Bandwidth Max Memory Depth Master Control
SUA8104 4 | 0 8 GSa/s | - 3,5 GHz 1 Gpts CPU

SUA8204



 0 | 4 - | 4 GSa/s 1,5 GHz 1 Gpts CPU
SUA8208 0 | 8 - | 4 GSa/s 1,5 GHz 512 Mpts CPU
SUA8304 2 | 2 4 GSa/s | 4 GSa/s 1,5 GHz 1 Gpts CPU
SUA8104G 4 | 0 8 GSa/s | - 3,5 GHz 1 Gpts GPU AI
SUA8204G 0 | 4 - | 4 GSa/s 1,5 GHz 1 Gpts GPU AI
SUA8208G 0 | 8 - | 4 GSa/s 1,5 GHz 512 Mpts GPU AI
SUA8304G 2 | 2 4 GSa/s | 4 GSa/s 1,5 GHz 1 Gpts GPU AI

Features
  • 8 acquisition channels
  • Bandwidth: 1.5 GHz
  • Sampling rate: 4 GSa/s
  • Vertical resolution: 14 bits
  • Master CPU control

Manuals

SUA8000-DataSheet

SUA8000_QuickGuide
