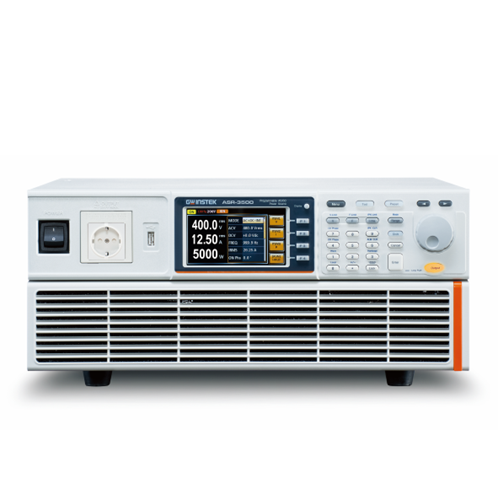

GW Instek ASR-3500 AC+DC Programmable Power Supply 5000VA (European Socket)

The ASR-3000 series consists of high-speed switching AC-DC power supplies with rise and fall times of 100 microseconds.

There are five models in the series: ASR-3200 (2 kVA), ASR-3300 (3 kVA), ASR-3400/3400HF (4 kVA), and ASR-3500 (5 kVA). The series can deliver its rated power in both AC and DC.

The ASR-3000 series provides several functions for the output signal:

-Sequence mode generates waveform drops, peaks, sags, changes, and other anomalous power line conditions.

-Arbitrary waveform function allows users to store/load user-defined waveforms.

-Simulation mode simulates power outages, voltage increases, voltage drops, and frequency variations.

The ASR-3000 series is ideal for the design and testing of on-board chargers, server power supplies, LED modules, AC motors, AC fans, UPS systems, and various electronic components, as well as for verifying applications for automotive and household electrical appliances.

Description

NB: Due to material sourcing issues, please verify the availability of the GPIB interface by calling AllData directly.

MODEL
 ASR-3500 ( european socket )
SKU  01SR350010GT
AC Mode Output ratings (AC rms)


Voltage setting range 0.0 V to 200.0 V / 0.0 V to 400.0 V
Voltage setting resolution  0.1V
Voltage accuracy ±(1 % of set + 1 V / 2 V) Single phase, Two-wire
Current  max  (100V ) 50A
Current  max  (200V ) 25A
Power capacity 5000 VA
DC Mode Output ratings
Voltage setting range -285 V to + 285 V / -570 V to +570 V
Voltage setting resolution  0.1 V
Voltage accuracy ±(1 % of set + 1 V / 2 V)
Current  max  (100V ) 50A
Current  max  (200V ) 25A
Power capacity 5000 W



Features

Main Features of the ASR-3000 Series

  • Output Rating: AC 0~400 Vrms, DC 0~±570 V
  • Output Frequency up to 999.9 Hz (5 KHz for ASR-3400HF only)
  • DC Output (100% of Rated Power)
  • Measurement Items: Vrms, Vavg, Vpeak, Irms, IpkH, Iavg, Ipeak, P, S, Q, PF, CF
  • Voltage and Current Harmonic Analysis (THDv, THDi)
  • Remote Sensing Capability
  • OCP, OPP, OTP, AC Fail Detection, and Fan Fail Alarm.
  • Supports Arbitrary Waveform Function
  • Output Capacity: 2kVA/ 3kVA/4kVA/5kVA
  • Customized Phase Angle for Output On/Off
  • Sequence and Simulation Function (up to 10 sets)
  • Interface (std): USB, LAN, RS-232, GPIB
  • Built-in External Control I/O and External Signal Input
  • Built-in Output Relay Control
  • Memory Function (up to 10 sets)
  • Built-in Web Server
