GW Instek  |  SKU: 03LLDS912G0S

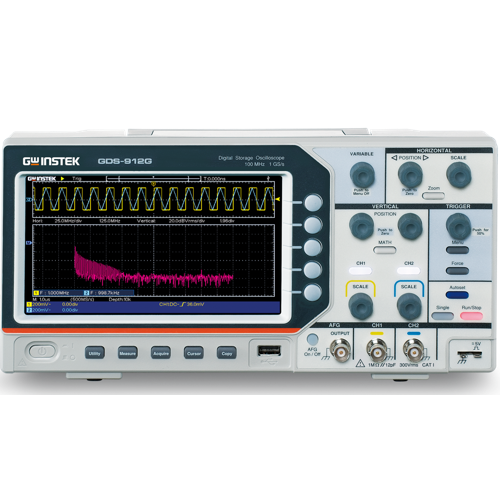

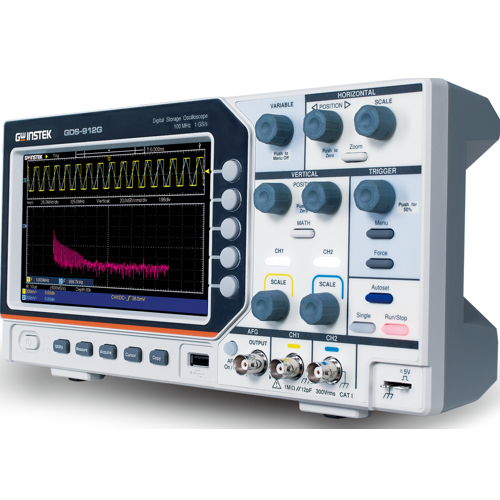

GW Instek GDS-912G Digital Oscilloscope - 100MHz, 2 Channels (with 25MHz AFG)

€305,00
Tax included Shipping calculated at checkout.

The GDS-912/912G digital storage oscilloscopes by GW Instek feature a 7-inch widescreen display with 15 horizontal divisions, offering 50 % more signal display area. The series provides a maximum sampling rate of 1 GSa/s and a memory depth of 20 Mpts per channel, enabling the capture of long-duration transients and maintaining its sampling rate at middle and low speed time bases through long memory settings. With 30 automatic measurement parameters, the oscilloscope allows users to quickly and easily analyze various signal conditions.

Balanced pricing and specifications, lightweight form with advanced features - featherweight in size, heavyweight in performance.

Description
model GDS-912G
SKU 03LLDS912G0S
channels 2
Bandwidth DC~100MHz(-3dB)
Rise Time
 3.5ns
Memory Depth 20M
Bandwidth Limit
 20MHz
Interface USB 2.0 Host/Device (Only one type is supporte at a time can't use both at the same time) , Host mode: Supporting Mass Storage Class (FAT16/32) Device mode : Supporting USBTMC Class



Features

Series features:
- 100 MHz Bandwidth, 2 Input Channels
- 1 GS/s Real-time Sampling Rate Maximum
- Vertical Resolution (A/D): 8bits
- Max. Input Voltage: = 300 Vrms
- Standard 25 MHz Arbitrary Function Generator for GDS-912G
- Standard Waveforms: Sine wave, square wave, ramp wave, pulse wave, arbitrary wave (GDS-912G)
- 20 Mpts Memory Depth per Channel
- Support 30 Automatic Waveform Measurements
- 6 digit High-precision Frequency Counter
- 2048 pts FFT Frequency Domain Signal Display
- 7" 800 x 480 TFT LCD Display
- USB 2.0 Host/Device (Only one type is supporte at a time can't use both at the same time) , Host mode: Supporting Mass Storage Class (FAT16/32) Device mode : Supporting USBTMC Class
- FREE DOWNLOAD OpenWave Software, USB Driver , LabView Driver

Standard accessories:
Power cord x 1, BNC Cable x 1(only for GDS-912G), USB Cable x 1,
100 MHz(10:1/1:1)Switchable passive probe for GDS-900 Series x 2

Optionale accessories:
GAK-003 50 Impedance Adapter
GTL-246 USB Cable, USB 2.0,A-B Type, 1200 mm
GCP-300 300 kHz/200 A Current probe
GCP-530 50 MHz/30 A Current probe
GCP-500 500 kHz/150 A Current probe
GCP-1030 100 MHz/30 A Current probe
GCP-1000 1 MHz/70 A Current probe
GTP-033A Oscilloscope Probe, 35 MHz 1:1 Passive Probe, BNC(P/M)
GCP-206P Power supply for current probe(2 input channel)
GCP-425P Power supply for current probe(4 input channel)
GDP-025 25 MHz High voltage differential probe
GDP-050 50 MHz High voltage differential probe
GDP-100 100 MHz High voltage differential probe
GCP-0275 2 MHz/750 A Current probe
GCP-0550 5 MHz/500 A Current probe
GCP-2525 25 MHz/250 A Current probe
GTP-100B-4 100 MHz(10:1/1:1)Switchable passive probe

Manuals

Downloads

User Manual_EN_Rev0_2025_0711
Datasheet_DS_GDS-900_E_202507(1)
Certification_CE_GDS-9xx_VoC_HM2507249_A1
