GW Instek  |  SKU: 01PD333S30GS

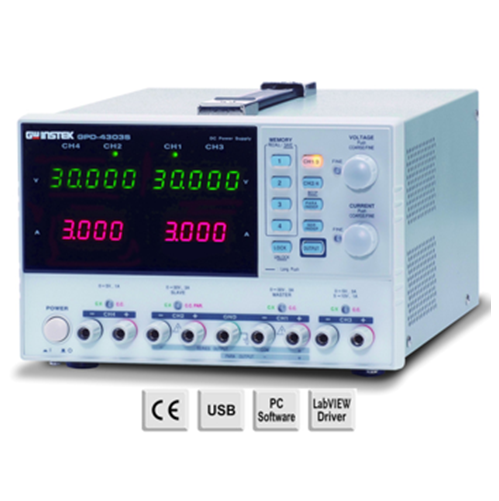

GW Instek GPD-3303S

The GPD-X303S series encapsulates the high quality and highest technology that GW-Instek has been able to achieve through its long history of power supply design and manufacturing. The series offers a digital control panel, large display, LED indicator lights, high output resolution, 4 sets of memory and settings reset, remote control via USB, and intelligent cooling fan control. In addition, the GPD-X303S series is user-friendly with a 'wide range of panel-definable settings. All these features make the GPD-X303 series pivotal in defining the new global power supply market.

Description


model
GPD-3303S 195W
SKU 01PD333S30GS
CH1 0-30V 0-3A
CH2 0-30V 0-3A
CH3 2.5/3 .3/5.0V 0-3A



Features

Series features:
- 2/3/4 Independent isolated outputs
- 4 Display sets : 3 digits after decimal point
- Minimum resolution :
- 1mV/1mA(GPD-2303D/GPD-3303S/GPD-4303S)
- 100mV/10mA(GPD-3303D)
- Digital control panel(Rotary switch, rubber buttons with indicator)
- Easy-to-use instrument, normal and fine volume adjustment
- 4 Sets store and recall settings
- Key lock
- Output on/off
- Series and parallel connection
- Automatic cooling with low-noise fans
- Compact design
- PC software and labview drivers
- USB standard interface

Manuals

GPD_series_specifications

GPD_datasheet
