GW Instek  |  SKU: 01PP725050GS

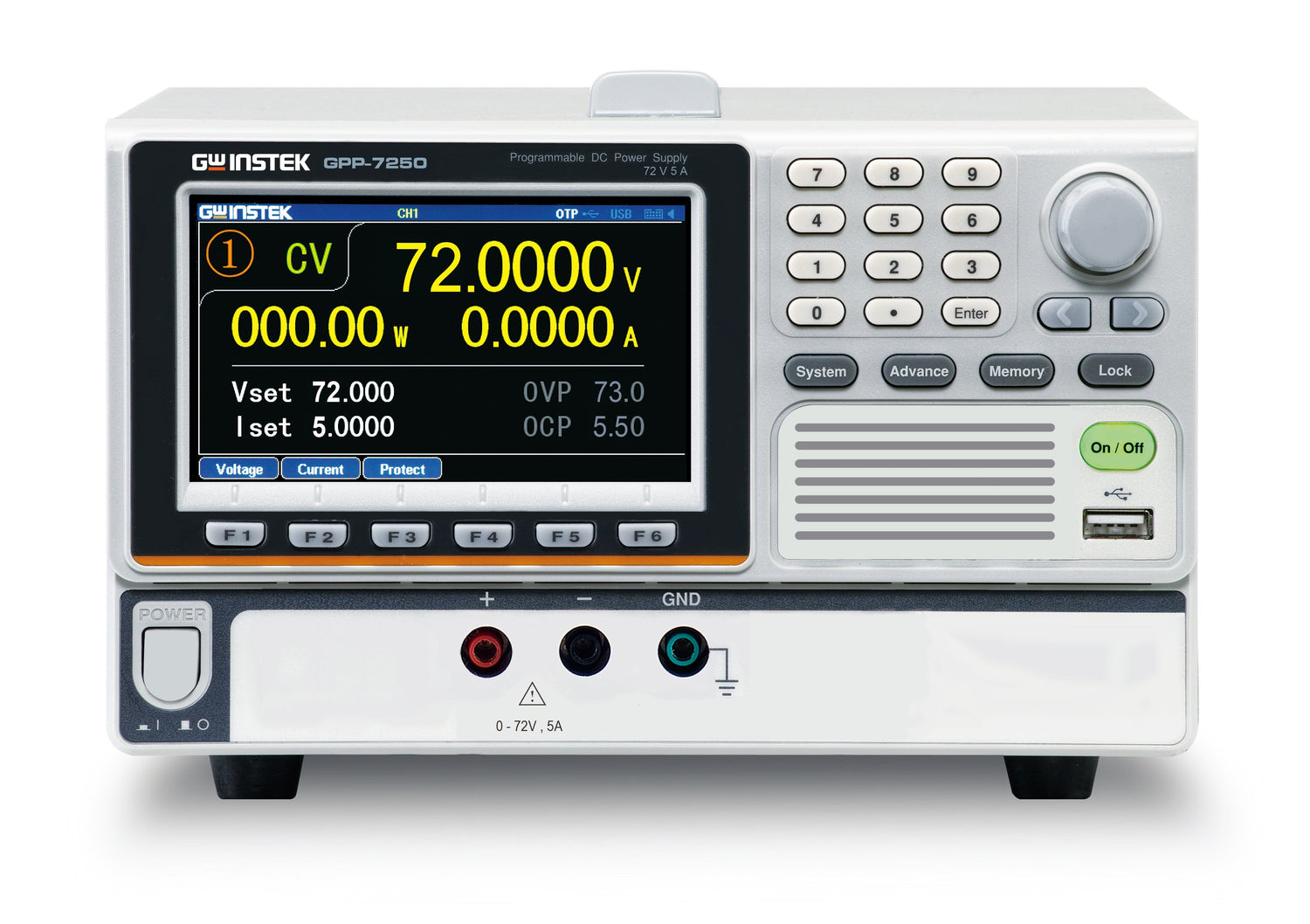

GW Instek GPP-7250 (LAN+GPIB)(European Type)(CE)

The two GW-Instek power supplies GPP-3610H and GPP-7250 with a power output of 360W enrich and complete the GPP series.

These power supplies provide in different modes displays of waveform measurements and all selected settings for the measurement channel.

Using the GPP series output monitoring function, the 'user can set the monitoring according to his needs, can generate an alarm , can interrupt the output during the measurement process and thus protect the DUT.

The GPP series provides an output recording function. The current and voltage values can be stored in the internal memory of the instrument and the results can be saved as *.Rec or *.Csv files and transferred via usb port.
The GPP-3610H and GPP-7250 power supplies are designed with a load function of up to 100 W.

The output of GPP-3610H and GPP-7250 also provides the sequential output function, which allows the 'user to change the output power waveform, set a constant voltage (CV) or constant current (CC) load sequence.



Model

Description
Characteristic GPP-3610H GPP-7250
SKU 01PP725050GS
Output mode
CH1 0-36V/0-10A 0-72V/0-5A
Voltage 0 ~ 36.000V 0 ~ 72.000V
Current 0 ~ 10.0000A 0 ~ 5.0000A
Constant Voltage Operation
Line Regulation ≤ 0.01% + 3mV ≤ 0.01% + 3mV
Load Regulation ≤ 0.01% + 5mV ≤ 0.01% + 5mV
Ripple & Noise (5Hz-1MHz) ≤2mVrms ≤2mVrms
Transient Recovery Time ≤100µs (50% load change，minimum load ≤100µs (50% load change，minimum load
Temperature Coefficient ≤ 300ppm/°C ≤ 300ppm/°C
Constant Current Operation
Line Regulation ≤ 0.01% + 3mA ≤ 0.01% + 3mA
Load Regulation ≤ 0.01% + 3mA ≤ 0.01% + 3mA
Ripple & Noise ≤ 2mArms ≤ 2mArms
Resolution
Programming Voltage/Current 1mV / 0.2mA 2mV / 0.1mA
Readback Voltage/Current 0.1mV / 0.2mA 0.1mV / 0.1mA



Features
  • 4.3" TFT LCD Display
  • Programming resolution: 1mV/ 0.2mA (GPP-3610H); 2mV/0.2mA (GPP-7250)
  • Readback resolution: 0.1mV/ 0.1mA
  • Low ripple noise: ≦ 1mVrms / ≦2mArms
  • Transient response time: ≦100us
  • Load function (CC, CV, CR mode)
  • Utilizes hardware to realize over voltage protection / over current protection / over temperature protection
  • Delay function/output monitoring function /output recorder function
  • Supports setting value, measurement value and output waveform display
  • Sequential output function and 8 built-in template waveforms
  • The output recorder function records the output voltage & current parameters with a minimum recording interval of 1 second
  • Sequence/delay/recorder/panel setting conditions respectively provide 10 sets of internal storage memory
  • Intelligent temperature-controlled fan effectively reduces noise
  • Standard interface: LAN, RS-232, USB, Ext I/O
  • Optional interface (manufacturer installed only): GPIB

Standard Accessories
-Power cord; Test Lead: GTL-104Ax1, GTL-105Ax1
-Optional Accessories: USB Cable GTL-246 USB 2.0 A-B type
-Standard Accessories (Manufacturer installed only): LAN Interface or GPIB+LAN Interface



Manuals

GPP_3610H_7250 series_brochure
GPP_3610H_7250 series_user_manual
GPP_3610H_7250 series_specs
GPP_3610H_7250 series_quick_start
