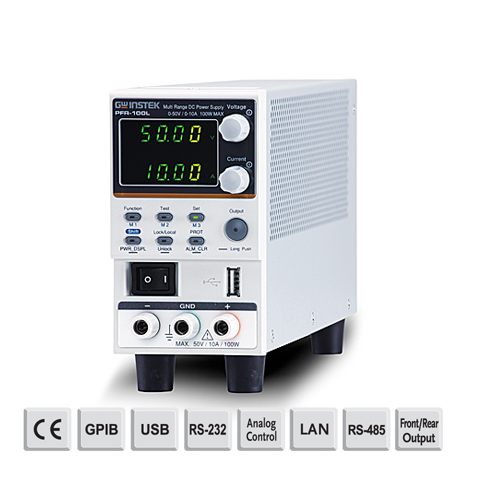

GW Instek PFR-100LGP LAN+GPIB

The PFR-100 series, identifies a small-sized, high-performance programmable DC power supply that adopts a natural convection design to dissipate heat. The fanless design ensures that test and design activities can be carried out in a totally silent environment. The fanless power supply does not suck in dust and foreign matter, so the PFR-100 series has a longer life cycle than conventional fan power supplies.

The PFR-100 series, with a power rating of 100 W, provides two models: PFR-100L - maximum output voltage of 50 V (at 2 A) or maximum output current of 10 A (at 10 V); PFR-100M maximum output voltage of 250 V (at 0.4 A) or maximum output current of 2 A (at 50 V).

The PFR-100 series has both front and rear panel output terminals. The front panel output terminal is very convenient and optimizes instrument setup and setting time . The rear panel output terminal facilitates wiring for rack mounting.
The 3U height, 70 mm width and 2.5 kg weight are key to the portability feature of the PFR-100 series. In addition, the multi-drop mode allows users to control up to 31 PFR-100 series power supplies without using switches/hubs , saving on equipment costs.
