GW Instek  |  SKU: 01PM821300GT

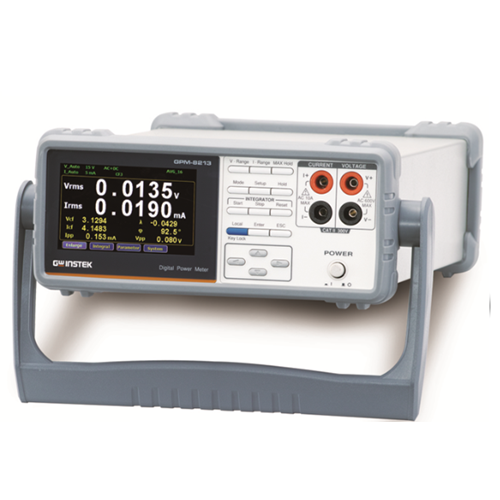

GW Instek GPM-8213 digital power meter

The GW Instek GPM-8213 power meter is designed specifically for single-phase (1P / 2W) AC power supply power measurements. It has advanced features including 4 " TFT LCD. , the five-digit measurement display, 19 power measurement parameters, integral measurement function, high-precision voltage/current/power measurement capability, front/back panel input terminals and various communication ports, All this facilitates users to obtain clear , convenient , accurate power measurements.

Description

Features:

  • 4" TFT LCD
  • Two data display modes
    Standard : two major measurement items + six secondary measurement items
    Simple : displaying test data of four different measurement items
  • Met the requirement of IEC 62301 power measurement
  • Voltage/current test frequency bandwidth : DC~6kHz
  • Watt resolution : 1mW
  • Lowest current range : 5mA, resolution : 0.1uA
  • Current/voltage measurements reach CF=3 for distorted wave and CF=6 for half range
  • W-h (power vs time)/A-h (current vs time) integration function
  • Total harmonic distortion measurement
  • Front panel test terminal
  • Standard interface : RS-232C, USB device, LAN
  • Optional interface : GPIB
  • Optional test fixture : GPM-001

GPM-8213 SKU: 01PM821300GT



Features

Manuals

GPM-8213_datasheet

GPM-8213_specs
