GW-Instek GDS-3504 500 MHz Digital Oscilloscope . 4 Channels

A high-tech DSO platform

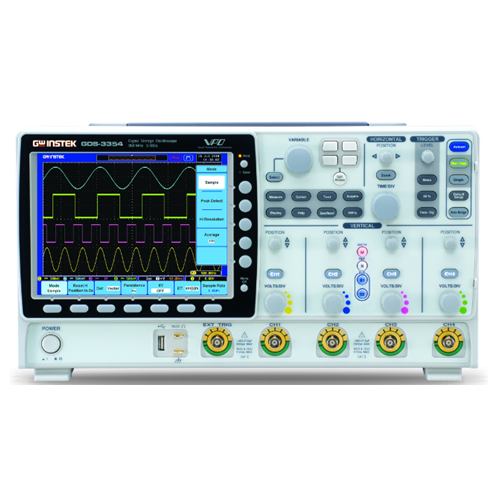

The GDS-3000 series is a platform with 4 input channels, 500 MHz bandwidth, 5GSa/s sampling rate and VPO waveform display. The split screen function is designed to meet the requirements of multi-window and multi-signal testing in research and production. Optional power analysis software and optional serial bus analysis software are available to facilitate activities in 'test engineering and manufacturing of associated products.The differential probe, GDP-025, GDP-050 and GDP-100, and current probes, GCP-020, GCP-100 and GCP-530 and GCP-1030, are available with the GDS-3000 series to provide complete solutions for a wide variety of applications in the market sectors of industry, service and education. The GDS-3000 series, a high-tech platform offering thoughtful functionality, provides very high performance and is used for both the general and professional markets.

Description
model GDS-3504
SKU 01DS350400GT
bandwidth 500 MHz
channels 4
recording length
 25K/Channel
real-time sampling
 4 GSa/s
equivalent-time sampling
 100 GSa/s









Features

GDS 3000 series features

  • 500/350/250/150MHz Bandwidth
  • Dual Sampling Modes: 5GSa/s Real-Time
  • Sampling Rate and 100GSa/s Equivalent Time Sampling Rate
  • 25k Points Memory for Each Input Channel
  • VPO (Visual Persistence Oscilloscope) Technology to Display Less-FrequentlyOccurred Signals
  • 8" 800 x 600 High Resolution TFT LCD Display
  • Unique Split Screen System with Independent Setting for Each Input Channel
  • Three Input Impedance Selections:
    50 /75 /1M ΩΩ Ω
  • Optional Power Measurement Software for Power Supply Measurement and Analysis
  • Optional Serial BUS Triggering and Decoding Software Supporting I2C, SPI and UART
  • Support GW APP Software-Easy Upgrade of Feature New Function
