Hikmicro  |  SKU: 308200398

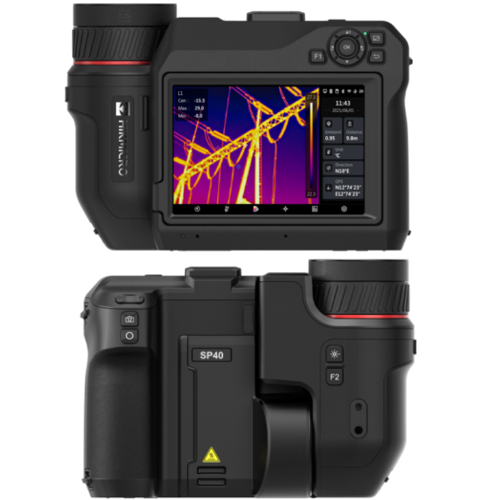

Hikmicro : Thermal Imaging Camera HM-TP94-Q/W-SP40-L19 SP Series

Description


Key Features model SP40 series SP
SKU 308200398
resolution 480*360
Pixel Pitch 17µm
Lens Lens 25mm/FOV 18.7 °H x 14 °V
Frequency 25Hz
Spectral Band 8 -14 μm
NETD NETD<30mk
Measuring Range -20 °C ~650 °C
Max Accuracy (±2 °C or ±2%)
SD card 128GB
Measurement presets Central Point, Hot Point, Cold Point, None, 10 Points, 1 Line, 3 Areas
Zoom 12x continuous digital
Interface WI-FI HotSpot , Bluetooth
Bi-Spetctrum Photo Resolution 2/5/8Mpx
Rangefinder Laser
Focus Manual/Auto/Laser
Lenses Supports Interchangeable Lenses
Geo GPS/BDS/GLONASS/GALILEO/COMPASS
Lens Rotation 180°/Display 90°
Display 1280x720, 5" LCD Touch Screen



Features

Manuals

SP40_Datasheet
