GW Instek  |  SKU: 01CT904000GT

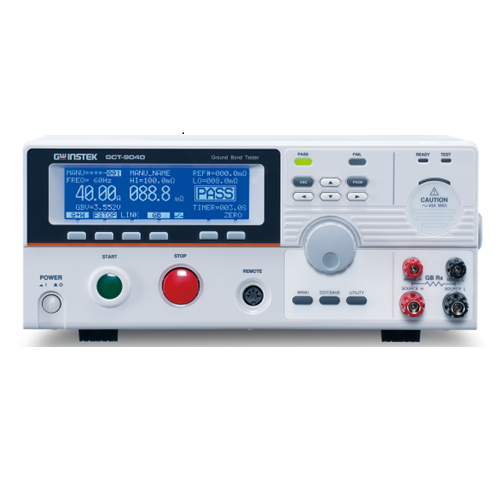

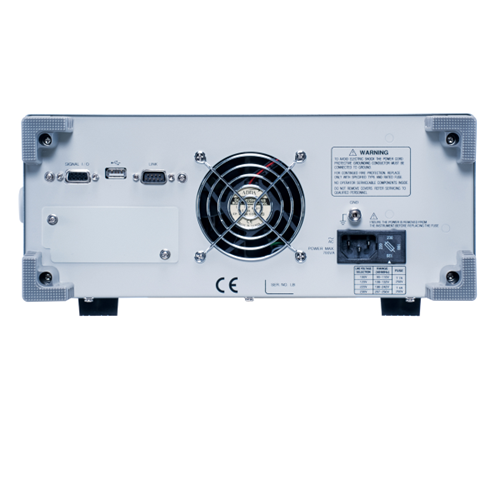

GW Instek GCT-9040 AC Grounding Analyzer, 40A

GCT-9040 is a ground bond tester and can work stand-alone or in combination with a GPT-9000 series safety tester to perform additional ACW/DCW/IR tests before, after or simultaneously (ACW/DCW only) with ground bond ( ground bond verification test operated by the instrument).

Description
model
GCT-9040
SKU 01CT904000GT
function verification of ground connection
Resistance measurement range 1 mΩ to 650 mΩ
display ICE BLUE DOT MATRIX 240 x 64 LCD
interfaces USB device, Signal I/O and GPIB (optional)
size and weight 330(W) x 148(H) x 460(D) mm; Approx. 17Kg max.



    Features

    - Ground bond tester with output current from 3A to 40A
    - Resistance measurement from 1 mΩ to 650 mΩ
    - Connection to GPT-9800/9900 series
    - ICE BLUE DOT MATRIX 240 x 64 LCD display
    - Function key for quick selection
    - Attention and status indication with high intensity indicator light
    - PWM switching amplifier to improve power efficiency and make testing more reliable
    - Maximum of 100 memory blocks for setting test conditions.
    - Remote terminal on front panel for "start" and "stop" and remote active
    - Interface: USB device, Signal I/O and GPIB (optional)

    Accessories included
    1 x Quick Start Guide, 1 x Power Cable
    1 x GTL-215 Test Lead
    1 x GTL-132 LINK Cable
    1 x GTL-247 USB Cable
    1 x GHT-119 REMOTE terminal cable, 1 x Interlock key
    1 x CD (complete user manual)
