Chroma  |  SKU: chr19073

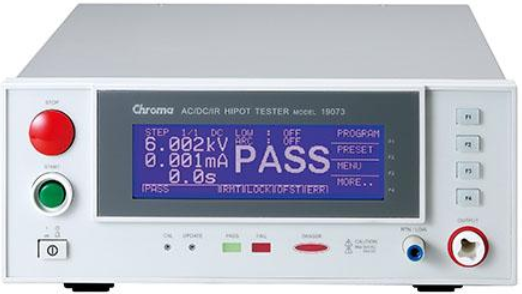

Hipot Tester Chroma 19073 ACWV / DCWV / IR

Tester for checking AC/DC dielectric strength and measuring insulation resistance. Three instruments in one.



Description

Model

19073

Channels

1

Programmable output voltage AC

max 5kV AC

Programmable output voltage DC

max 6kV DC

Insulation resistance measurement

1Mohm to 50Gohm

Ground continuity check (GC)

available
GFI shutdown shutdown of the instrument when
current imbalance > 0.5mA

Interface for remote connection

Standard RS-232 interface

Open short check(OSC) function
shutdown of the instrument when
current imbalance > 0.5mA
Flashover (ARC) detection
Quick discharge of DUT in IR and DC test
Pause mode
UL and TUV approved
CE mark
Programmable ramp/fall and test time
Programmable high/low limit
Save/Recall program test function
Remote control and interface support


Features

KEY FEATURES

  • ACWV/DCWV/IR 3 in 1 hipot tester
  • Programmable output voltage to 5kV AC and 6kV DC
  • 1kV insulation resistance test
  • Insulation resistance measurement from 1MΩ to 50GΩ
  • Ground continuity check (GC)
  • Standard RS-232 interface
  • Open short check(OSC) function
  • GFI shutdown of the instrument when
    current imbalance > 0.5mA
  • Flashover (ARC) detection
  • Quick discharge of DUT in IR and DC test
  • Pause mode
  • UL and TUV approved (*see spec.)
  • CE mark
  • Programmable ramp/fall and test time
  • Programmable high/low limit
  • Save/Recall program test function
  • Remote control and interface support

Manuals

Chroma 19070 and 19050 series datasheet
