GW Instek  |  SKU: 01PM831000GT

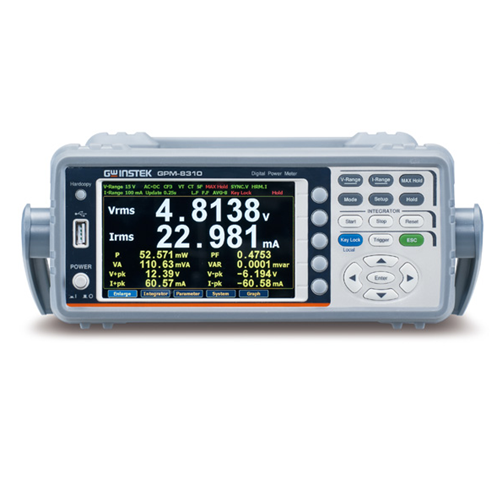

GW Instek GPM-8310 digital power meter

€1.397,00
Tax included Shipping calculated at checkout.

NB: Due to material availability problems check the availability of 'GPIB interface directly by calling AllData.

GW Instek GPM-8310 is a digital power meter for measuring single-phase AC power (1P / 2W). Features include DC, 0.1Hz ~ 100kHz test bandwidth, 16 bit A/D and 300 kHz sampling rate.
It has a 5" TFT LCD screen with a five-digit measurement display and provides 25 parameters related to power measurement. It is a high-precision instrument. It has the ability to display waveform (voltage/current/power), has the function for integrating measurement values, measuring and analyzing harmonics of each order. It features sense terminals and various communication interfaces to enable users to obtain clear results and accurate power measurements. It is an extremely affordable product and offers the most comprehensive features among instruments in the same category.

Description

GPM-8310 SKU: 01PM831000GT

    Features

    Key Features：

    • 5 "TFT LCD
    • DC, 0.1Hz ~ 100kHz voltage/current test bandwidth
    • Two numerical display modes: General mode: displays 2 main test items + 8 secondary test items ; Simple mode: displays the test values of 4 main test items
    • Waveform display: V (voltage), I (current), P (power)
    • The current/voltage can be measured to a deformed wave with CF of 3, and the half-range CF can reach 6 or 6A
    • 50th order of harmonic measurement and analysis (value and bar graph)
    • Integration function supports automatic level-changing
    • External current sensor input terminals (EXT1/EXT2)
    • Standard interfaces: RS-232C, USB device/ host, LAN, GPIB
    • Optional interface: Digital I/O (DA4) (must be installed before leaving the factory)
    • Optional accessory: GPM-001
