GW Instek  |  SKU: 01PM833010GT

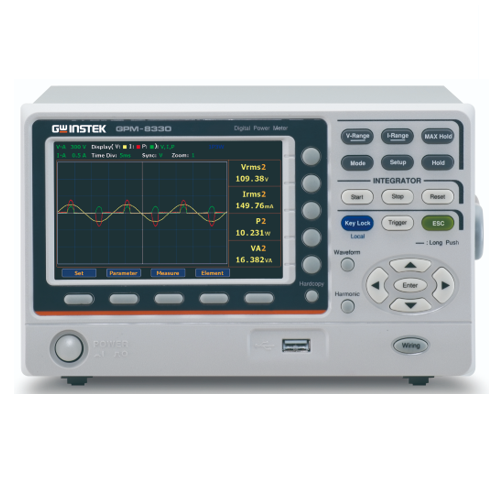

GW Instek GPM-8330 digital power meter with GPM-DA12 . (RS-232C, USB device and host, LAN)

GW Instek GPM-8320/8330 instruments are digital power meters specifically designed to measure power in three-phase AC power sources. They are suitable for most electrical and electronic product test applications (GPM-8320 consists of two modules , GPM-8330 consists of three modules).
These models have a DC test bandwidth, 0.1 Hz~100 kHz and are equipped with 16-bit A/D converters and a sampling rate of 300 kHz. They possess a 5-inch TFT LCD display, 5 digits of measurement readings, 25 different power measurement parameters with high measurement accuracy.
The GPM-8320/8330 also have waveform (voltage/current/power) display functionality, integration measurement function, harmonic measurement and multiple order analysis (50/60 Hz measurement complies with IEC61000-4-7 requirements), external sensor input terminals and a wide variety of communication interfaces.
These features help users obtain clear, convenient and accurate power measurements, making them the most comprehensive and cost-effective power meters on the market compared to instruments in the same category.

GPM-8330 3 modules (RS-232C/USB device & Host/LAN) GPM-DA12 (GPIB+DA12) included

Description

GPM-8320 SKU: 01PM833010GT

Features

- 5" TFT LCD display
- Voltage and current test Frequency bandwidth: DC, 0.1Hz ~ 100kHz.
- Waveform display: V (voltage), I (current), P (power).
- Distorted wave current and voltage measurement.
- Measurement of harmonics by IEC 61000-4-7 standard (50/60Hz).
- Wiring configuration selection button (1P3W,3P3W,3P4W,3V3A)
- Harmonic measurement and analysis up to 50 orders
- Auto-range function for integration mode
- Screen capture via USB Host
- Input for external current sensor (EXT1/EXT2)
- Standard interfaces: RS-232C, USB device/host and LAN
- Optional interfaces: GPM-DA12 GPIB + digital I/O (factory installed only)

Standard accessories:
Safety Instruction Sheet x 1,
Power cord x 1,
Test lead GTL-209 x 2,
Test lead GTL-212A x 2 (for GPM-8320),
Test lead GTL-209 x 3,
Test lead GTL-212A x 3 (for GPM-8330),
CD x 1 (including complete user manual and USB driver),
DA12 cable GTL-214 (available for GPM-8320/8330 with GPM-DA12 only),
GPM-002 Terminal Cover

GPM-8320 SKU: 01PM833010GT

Manuals

GPM-8320_8330_specs

GPM-8320_8330_brochure

GPM-8320 8330_user_manual
