GW Instek  |  SKU: 01LC10K000GT

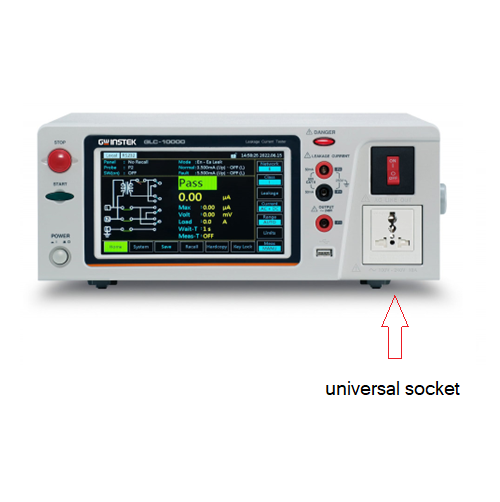

GW Instek GLC-10000 Universal socket security tester

NB: Due to material availability issues check the availability of the GPIB interface directly by calling AllData.

GW Instek has released a new leakage current tester: GLC-10000. This instrument features 12 simulated human impedance networks that comply with safety standards . It is ideal for testing medical electrical equipment and general electrical and electronic equipment, IT products, home appliances, other electronic devices. It ensures that the product design and manufacture comply with the requirements of safety standards including IEC, EN, UL, etc.

In order to comply with leakage current flow paths under different standards, GLC-10000 offers 20 measurement options to meet both the requirements of previous standards and those of newer standards.

GLC-10000 is equipped with a 7-inch TFT LCD touch screen that makes measurement operations more convenient and faster. The 'wide screen allows setting information and test results to be displayed on the LCD at the same time, improving the readability of observing information.
Relative to the measurement outputs of the instrument, users can select the front socket output (10A max.) or the rear terminal (20A max.) by selecting according to the current consumption of the DUT.
Thirty sets of internal memory can be used to store product measurement settings while another 1000 sets can be used to store results for reuse in conducting and analyzing the product to be tested later.

In addition, GLC-10000 provides a variety of standard interfaces, such as RS-232C, USB, LAN and remote I/O, and even GPIB (optional) to meet all system control and data acquisition needs.

Description
model GLC-10000 leakage current tester ( Leakage current measurement tester )
SKU 01LC10K000GT
socket universal
application electromedical and general electrical industry
controls 7" touch panel with color LCD
measurements

12 different types of simulated human impedance networks to measure human body resistance ( including IEC 60601-1:2020 3.2rd)
allowable leakage current max 50mA
connection for external connections
External terminal for connecting an MD extension. MD output terminal can be connected to an oscilloscope for convenient comparison of measured waveforms
memory
 30 sets of memories for test parameters; 1000 sets of memories for measured data
information collection Export and import function of test parameters via USB host for both measurement data and screen capture
Standard interfaces RS-232C, USB Host and Device, LAN, signal I/O and GPIB (optional)
Dimensions 342 (W) x 133.87 (H) x 348.51 (D) mm
Weight Approx. 7.5kg



Features

Included Accessories
CD (User manual) x 1, Power cord (Region dependent) x 1, Test leads (GTL-207A) x 2,
Alligator Clips (GLC-01) x 1 (2 Red/2 Black), Foil Probe (GLC-02) x 1
Power Cord for EUT (GLC-03) x 1, Input & Output Terminal Cover (GLC-04) x 1

Manuals

GLC-10000_brochure

GLC-10000_specs

GLC-10000_user_manual
