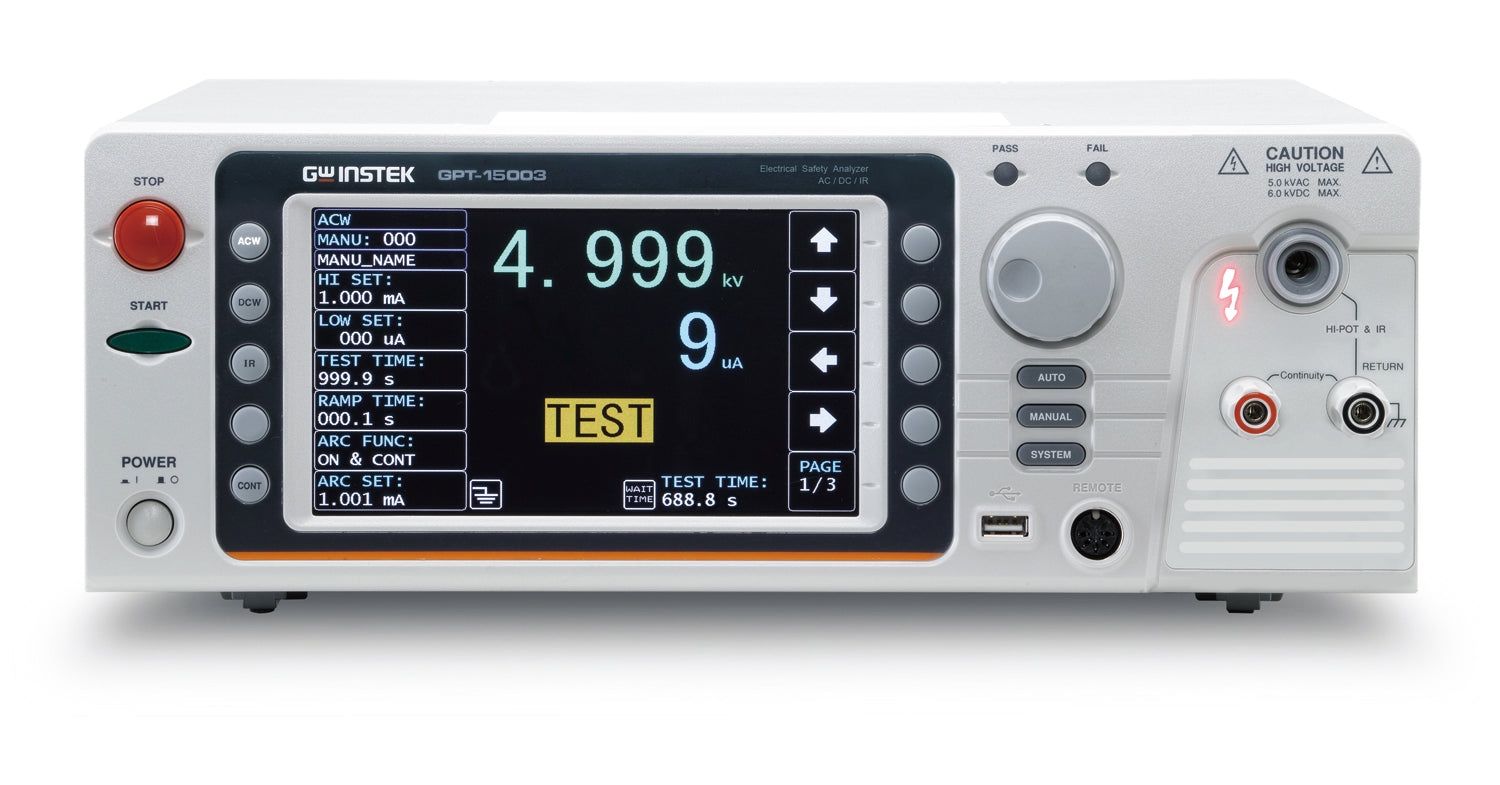

GW Instek GPT-15003 AC/DC/IR Security Tester

The GPT-15000 series represents the flagship series for GW-Instek electrical safety testers , the first series in the world to comply with IEC 61010-2-034 (Safety Requirements for Electrical Measuring Apparatus for Control and Laboratory Use , Special Requirements in Insulation Resistance Measurement Equipment and Electrical Resistance Test Equipment ) which states that the requirements for software and hardware interfaces should be verified during design so as to ensure that users are provided with the necessary protections and warnings when using the instruments.

The GPT-15000 series consists of 4 models :
Model GPT-15001 performs AC withstanding voltage test and continuity test.

Model GPT-15002 allows AC/DC withstanding voltage test and continuity test;

Model GPT-15003 provides AC/DC withstanding voltage test, insulation resistance test, and continuity test;

Model GPT-15004 allows AC/DC withstanding voltage test, insulation resistance test, AC ground bond test, and continuity test;

The whole series provides a maximum output capacity of 500VA and employs highly efficient PWM amplifier to effectively exclude the 'influence of input voltage fluctuation or distorted waveforms so as to ensure truly stable high output voltage while performing AC withstanding voltage test on the device under test to meet IEC, EN、UL、CSA、GB、JIS safety requirements stipulated as test requirements for various electronic/electrical products or components.
