GW Instek  |  SKU: 01PT15K500GT

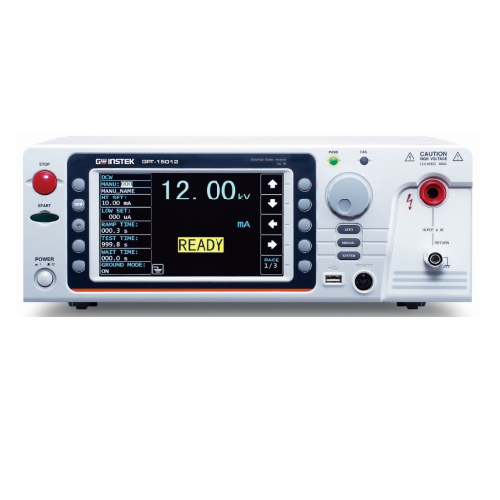

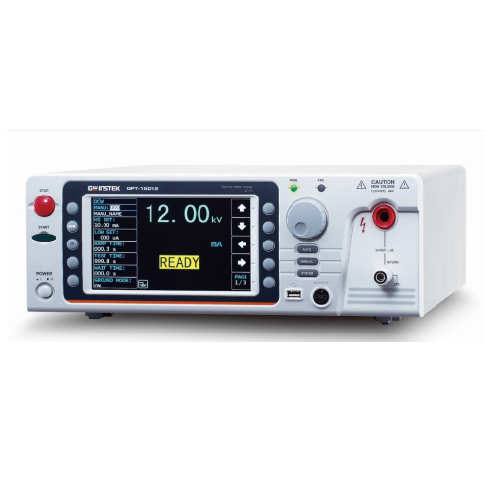

GW Instek GPT-15012 DC 12KV / IR 5KV Security Tester

The GPT-15012 safety analyzer enables DC voltage resistance test and insulation resistance test. It uses a high-efficiency PWM amplifier to effectively exclude the influence of fluctuating input voltage or distorted waveforms. This ensures a stable high-voltage output when performing the voltage resistance test on the DUT , a prerequisite to be able to meet safety standards such as IEC、EN、UL、CSA、GB、JIS provided for various products or electronic/electrical parts.

The GPT-15012, is a safety analyzer complying with IEC 61010-2-034.

The series uses a 7-inch color TFT LCD display, and retains the feature of user operation with simple operations and simple and clear observation of test results. The main test functions include DC voltage resistance test (DC 12 kV/10 mA) and insulation resistance test (50 V DC ~ 5000 V/50 GΩ max.).

Description
model GPT-15012 (CE) DC/IR
SKU 01PT15K500GT
measurements taken electrical resistance DC , IR
dimensions and weight 380(W) x 148(H) x 492(D) mm; Approx. 9.8kg



Features

-DC 12kV / 10mA and IR 5kV / 50Gohm
-7" TFT LCD
-Compliant with IEC 61010-2-034 design requirement
-Manual / Auto Mode
-RMS Current Measurement
-Zero Crossing Turn-on Operation
-Controllable Ramp-up & Ramp-down Time
-Statistics & Analysis Function
-Capacitive Load Testing Capability up to 47µF
-Sweep Function for DUT Characteristic Analysis
-Convenience Listed AUTO mode easy to read result and judge
-Internal Storage and USB Storage available
-Barcode function available
-Setting Data Export/Import

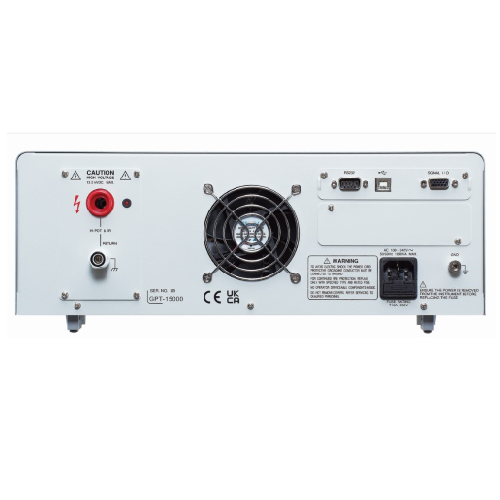

-Rear panel output available
-Interface : RS-232C, USB host/device, Signal I/O and optional GPIB or LAN
-Universal power input
