Astronics  |  SKU: P2R

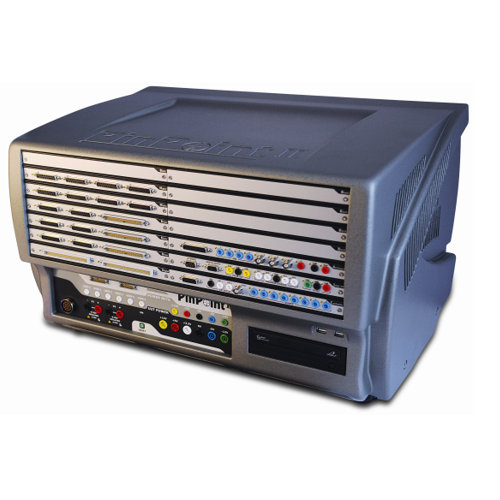

Astronics: PINPOINT P2R

Test and diagnose electronic circuits quickly and reliably
The PinPoint IIR enables you to select and apply different test techniques to a single circuit, ensuring maximum fault coverage and giving you full confidence in your equipment integrity.

The PinPoint IIR gives you the following capabilities:
• In-Circuit (Dynamic and Passive)
• Digital / Analog / Hybrid
• Analog Instrumentation
• Cluster Testing
• Functional Edge Testing
• Boundary Scan
• Impedance Signature Analysis
• Reverse Engineering / Schematic Generation

Description

The PinPoint IIR system performs functional tests on individual components using in-circuit test methods and a fixtureless clip technique.
These dynamic digital and analog tests prove the correct operation of each device and can
also detect open circuit tracks or incorrect, broken, or missing passive components on networks.
Tests can also be applied at the edge connector of a circuit to prove the functionality of the whole circuit.
When used for component level diagnostics, PinPoint IIR gets to the heart of a problem, minimizing PCB re-work by identifying a fault to the actual component or network, precisely and accurately. To ensure safe in-circuit testing, the PinPoint IIR conforms to stringent back-driving controls and requirements, as specified by DEF STAN 0053.

Features

CHASSIS VARIANTS
PinPoint 8 and 14 Slots
Both versions offer a flexible configuration
that can be tailored to meet
your requirements. Each system
supports up to 240 In-circuit driver
channels for analog, digital, and VI
testing. With additional options to
expand edge test capability, signal
switching, and various instrumentation,
the PinPoint IIR provides the
tools you need to keep your
electronics working.

SYSTEM POWER SUPPLIES
The standard UUT PSUs have the
following specifications:
• 1 off+5V@30.0A
• 1 off +12V @6.0A
• 1 off-12V@4.0A
• 1 off-5V@1.0A
• 3.3V@8Amp
An internal, dual-isolated variable
power supply offers 0-20 Volts at 10
Amps and is available for applications
that require more than
standard voltage and power.
