Astronics  |  SKU: Sigma

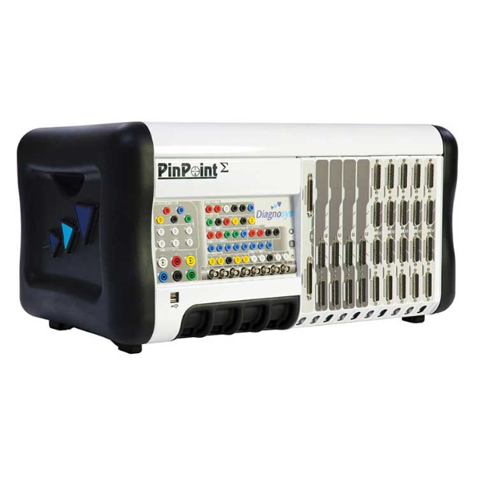

Astronics: PINPOINT SIGMA

Finding More Faults No one single test method can
provide the coverage required to find faults and eliminate the
common ‘No Fault Found’ issue.
The multiple test methods available with PinPoint systems provide a comprehensive and thorough test of the circuit, finding more faults.
• Functional testing from the edge connector
• Functional testing of a single component
• Boundary scan
• Passive and active analog testing
• Mixed-signal functional test
• Vectorless test
• Analog signatures
• Parametric testing

Description

Designed from the outset with modularity and scalability in mind, the PinPoint systems deliver the tools and functionality you need today while being able to provide higher performance and capability when it is needed in the future.
The PinPoint Alphaα and the PinPoint SigmaΣ protect your investment with their flexible, modular architecture. Additional performance and capability can be added to the standard systems, giving you a method to test even the most challenging circuits.

Features

PinPoint SigmaΣ Specifications
• Up to 384 dynamic Universal test
channels
• Up to 256 Digital test channels
• 5MHz, 10MHz, 15MHz, or 25MHz
digital test rate options

Manuals

datasheet ALPHA e SIGMA
