KEWELL  |  SKU: E5000NG-2K2-0150-0200

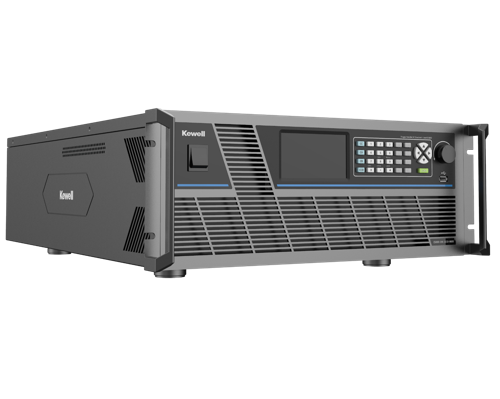

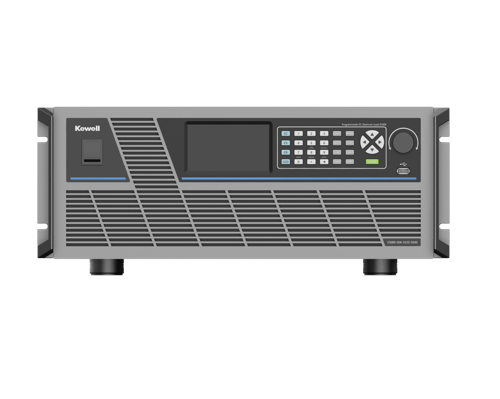

Kewell E5000 Normal config. Programmable DC Electronic Load

E5000 Series is a compact, high-power DC electronic load featuring wide operating range and high dynamic frequency. In 4U size, it powers up to 6.6kW and outputs voltage up to 1200V. It supports at most 10 E5000 devices in parallel operation.

Voltage
Current
Power

Description

Normal configuration

Normal  Pro
features Fundamental,
Cost-effective 		Fully-featured,
Multi-scenario
Basic mode(CC/CV/CR/CP/CCD)    YES    YES
Battery discharge    YES    YES
Short-circuit simulation    YES    YES
LIST mode    YES    YES
Dynamic resistance load (CRD)      -    YES
Composite modes(CVCC/CRCCICVCRIAUTO)      -    YES
Sine wave mode(SWD)      -    YES
Dynamic load sweep(SWP)      -    YES
OCP/OPP threshold setting      -    YES


Yes means available , "-"  means not available

Features

Series Features

-High power density: 6.6kW in 4U
-Power output range: 6.6kW
-Voltage output range: 0 ~ 150V, 0 ~ 600V, 0 ~ 1200V
-A variety of modes: CC, CV, CR, CP, CCD, and CRD
-Three voltage levels + three current ranges
-Automatic GO/NG detection
-Remote voltage compensation
-Analysis of fuel cell impedance
-RS485/CAN/LAN/USB communication
-Optional GPIB
-Protections: OVP, OTP, etc.
-Dynamic frequency of 50kHz
-Up to 255 groups of programmable sequences
