KEWELL  |  SKU: G6000UG-12K-0450-0090

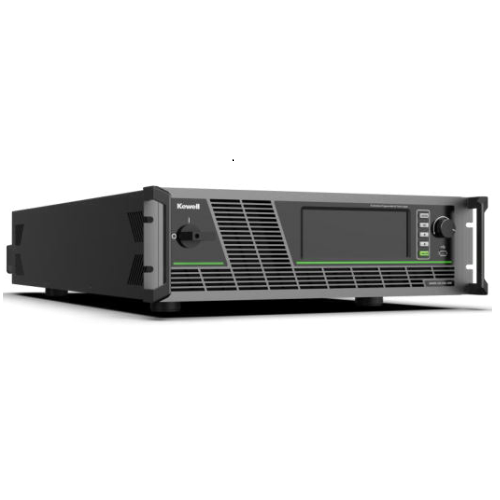

Kewell G6000 Ultra config. Bidirectional Programmable AC Power Supply

The G6000 series is a four-quadrant AC power supply featuring high precision, high power density, and high dynamic performance. As a source, it supports adjustment of three phases separately, while having LIST/PULSE/STEP and other programming functions to simulate the disturbance characteristics of grid voltage and frequency. It also has waveform editing, harmonic and inter-harmonic modes, able to simulate abnormal grid conditions and test the grid tolerance of the device under test (DUT). As a load, it has built-in AC load models to simulate different load characteristics.

Voltage
Current
Power

Description

Ultra configuration

Normal  Pro   Ultra
features Fundamental,
Cost-effective		 Fully-featured,
Multi-scenario		 Ultimate experience,
Lab testing-oriented
Four-quadrant    - YES   YES
Unidirectional YES    -    -
AC YES YES   YES
DC    - YES   YES
AC+DC     - YES   YES
List/Pulse/Step YES YES   YES
Waveform editing    - YES   YES
Harmonic mode    - YES   YES
Inter-harmonic mode    - YES   YES
Harmonic display    - YES   YES
AC load (CC/CR/CP/RLC/PQ modes)    -    -   YES

Yes means available , "-"  means not available




Downloads




Features

Series Features

-Automatic switching of the source-load function
-AC electronic load
-AC power output range: 0 ~ 18kVA
-AC current output range: 0 ~ 90A
-AC voltage output range: 0 ~ 450V (L-N)
-Maximum DC voltage output: 650V

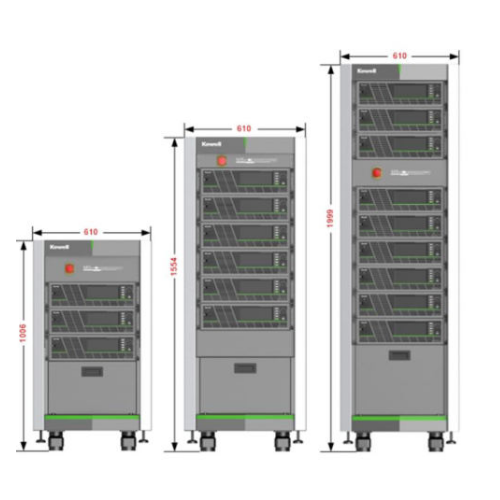

-Parallel connection：up to 6 units
-Single phase or three-phase output
-Able to simulate instantaneous grid interruption of 1ms
-Built-in waveforms: triangle, square, clipped sine, trapezoid, and sawtooth.
-Harmonics and inter-harmonics superposition
-Harmonics analyzer
-Communication interfaces: RS232/LAN/USB/CAN/Digital IO/Analog IO
-Protections: OVP, OCP, OPP
