KEWELL  |  SKU: S7000UG-7K5-0750-0060

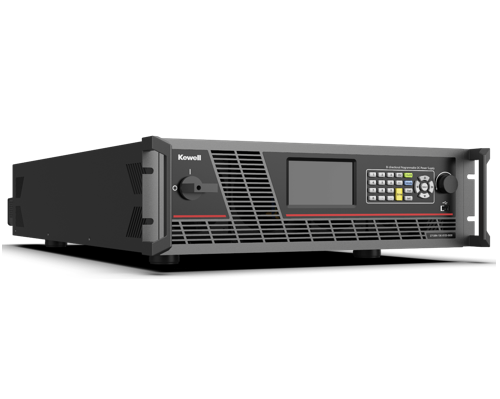

Kewell S7000 Ultra config. Bidirectional Programmable DC Power Supply (High Voltage Version)


The S7000 Series is a high precision, regenerative DC power source. As a DC source, it supports dual quadrant energy flow, with high conversion efficiency and high power density. In 3U size, it outputs power up to 30kW and voltage up to 2000V. It supports parallel operation of multiple devices. HMI: Colorful touchscreen and knob. S7000 is applicable to testing of battery, battery stor-age inverter, EV, etc.

Voltage
Current
Power

Description

Ultra configuration

Normal  Pro   Ultra
features Fundamental,
Cost-effective		 Fully-featured,
Multi-scenario		 Ultimate experience,
Lab testing-oriented
Bidirectional DC power supply  YES YES   YES
IV simulation    - YES   YES
Battery simulation    - YES   YES
Battery test    - YES   YES
DC electronic load     -   -   YES

Yes means available , "-"  means not available

Features

Series Faetures

  • Automatic switching of source-load function
  • High power density: 30kW in 3U
  • Power output range: 0 ~ 30kW
  • Voltage output range: 0 ~ 2000V

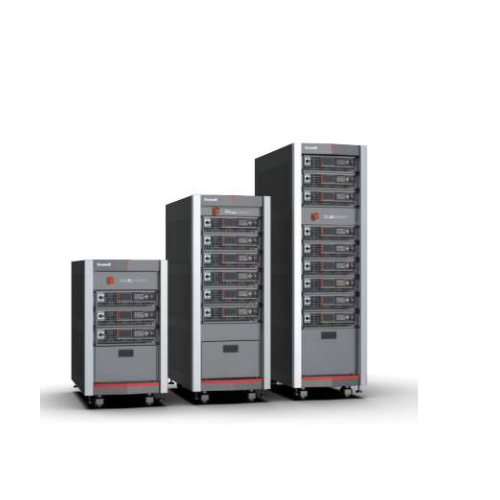

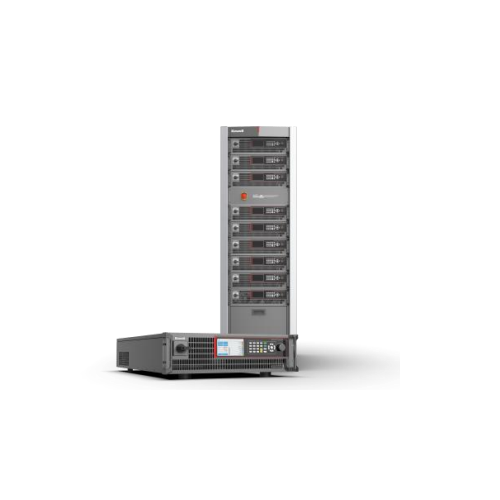

  • Parallel connection: up to 20 units
  • AC voltage input: 342VAC ~ 528VAC
  • PV simulation: Static MPPT, Multi-IV, EN50530, etc.
  • Battery simulation: 6 fixed types, custom type
  • Battery charging and discharging test function
  • RS485/CAN/LAN/USB communication interface
  • Protections: OVP, OCP, OTP, OPP, etc.
  • Remote voltage compensation

Manuals

product catalog

datasheet

s7000_HV_user_manual
