GW Instek  |  SKU: 03ALCR11000S

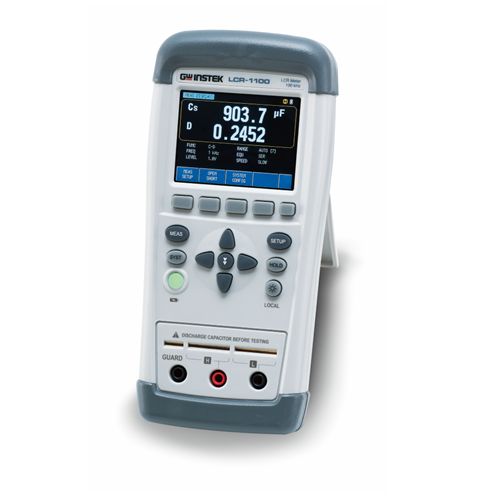

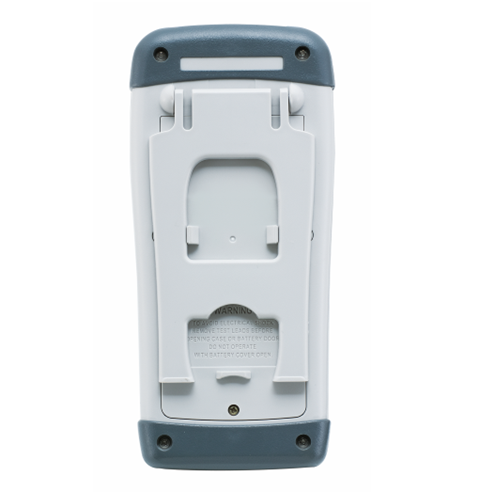

GW Instek LCR Meter LCR-1100 100KHz

GW Instek launches the new LCR-1000 series, a portable LCR meter with real-time automatic testing function. The series adopts a TFT-LCD and provides a basic accuracy of 0.2%. Users can choose to use buttons or touch screen operations. The series with high measurement accuracy is especially suitable for precision testing , maintenance testing, in the field of component manufacturing, in schools and research institutes , in quality testing.

The LCR-1000 series, with 50,000-count displays for both main and auxiliary parameters , with a basic accuracy of 0.2% , supports 2-wire or 5-wire measurements.
In addition, the series also provides function-to-function comparison and data storage function to meet various types of test and measurement requirements for different types of components.
The entire series is equipped with USB-HID and USB-VCOM interfaces.
Simple and convenient PC software is provided for remote control, compatible with SCPI commands to enable users to develop customized programs to meet data acquisition needs.

The series includes two models whose characteristics are as shown in the table.

Description
MODEL LCR-1100
 LCR-1010
SKU 03ALCR11000S
FREQUENCY 50/100/120/1k/2k/10k/50k/100kHz 50/100/120/1k/2k/10kHz
Main Display 50,000 counts 50,000 counts
Sub Display 50,000 counts 50,000 counts
Function C-D, C-Q, C-R, L-D, L-Q, L-R, L-Rdc, R-Q, R-X, R-Rdc, Rdc, Z-D, Z-Q, Z-θr, Z-θd
 C-D, C-Q, C-R, L-D, L-Q, L-R, L-Rdc, R-Q, R-X, R-Rdc, Rdc, Z-D, Z-Q, Z-θr, Z-θd
Basic accuracy
 0,2%
 0,2%
Level
 0.3V, 0.7V, 1Vrms and ±1Vdc
 0.3V, 0.7V, 1Vrms and ±1Vdc
Equivalent
 Series、Parallel
 Series、Parallel
Auto LCR
 YES
 YES
Range
 Auto/Manual
 Auto/Manual
Speed
 "Fast:10 times/sec
Slow:2.5 times/sec"
 "Fast:10 times/sec
Slow:2.5 times/sec"
Output Impedance(RO)
 100Ω
 100Ω
Correction
 Open、Short
Open、Short

Features
  • 2.8" TFT Touch LCD
  • 50,000 Counts Resolution on Primary and Secondary Display
  • 0.2% Basic Accuracy
  • Six or Eight Selectable Test Frequencies Depends on Model
  • 15 Kinds Measurement Combinations Available
  • Test Level Selectable : AC 0.3V/0.7V/1Vrms and DC +/- 1V
  • Selectable Measurement Speed : Fast 10 Times/s, Slow 2.5 Times/s
  • Auto LCZ Mode for Automatic Component Type Identification and Measurement
  • Data Hold
  • USB-HID/USB-VCOM Interfaces for Remote Communication
  • Software for Datalogging is Available
