GW Instek  |  SKU: 01CR600200GT

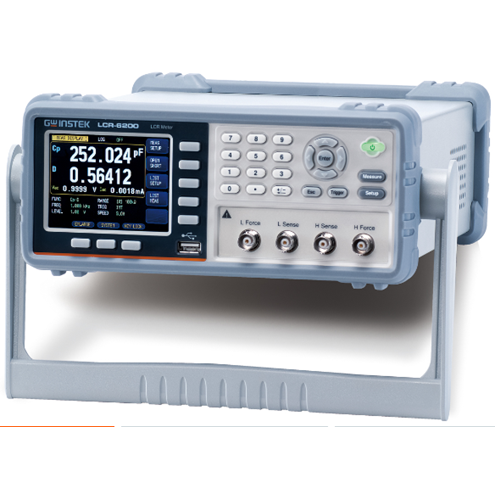

GW Instek LCR Meter LCR-6002 2KHz

The brand new high-precision LCR meter, LCR-6000 series, with its five models, has a test frequency range extending from 10Hz up to 2kHz / 20kHz / 100kHz / 200kHz / 300kHz (maximum) and a basic accuracy of 0.05%. The compact design, 2U height and 1/2 rack, is one of the main features of the series and makes it practical in 'use both benchtop and system rack. The whole series adopts a 3.5-inch color LCD display and has remarkable display parameters. The compact LCR-6000 series with a variety of functions is absolutely an excellent instrument for use in R&D, production testing and generally in any testing stage where measurement of passive components is required.

Description
MODEL LCR-6002
SKU 01CR600200GT
Test frequencies 10Hz - 2kHz range

Features
  • 3.5" color LCD
  • 5 models (10Hz~2kHz/20kHz/100kHz/200kHz/300kHz)
  • Consecutive test frequency
  • Basic accuracy : 0.05%
  • Measuring speed up to 25ms (max.)
  • Full frequency range or spot OPEN/SHORT
  • 16 major/secondary parameter measurement combinations and two additional monitoring parameters(maximum four different parameters can be shown simultaneously)
  • DCR measurement and internal D.C. bias voltage (±2.5V)
  • PASS/FAIL judgment
  • Auto Level Control (ALC) function
  • BIN function provides 9BIN and 1AUX, totally 10 BIN
  • 10 steps listed tests to select different frequency, voltage and current criteria
  • Standard interface : RS-232C, Handler and USB Host / Device
  • Compact size, ideal for automatic equipment (2U,1/2 RACK)
  • Labview driver available

Manuals

LCR-6000_brochure

LCR-6000_specs
