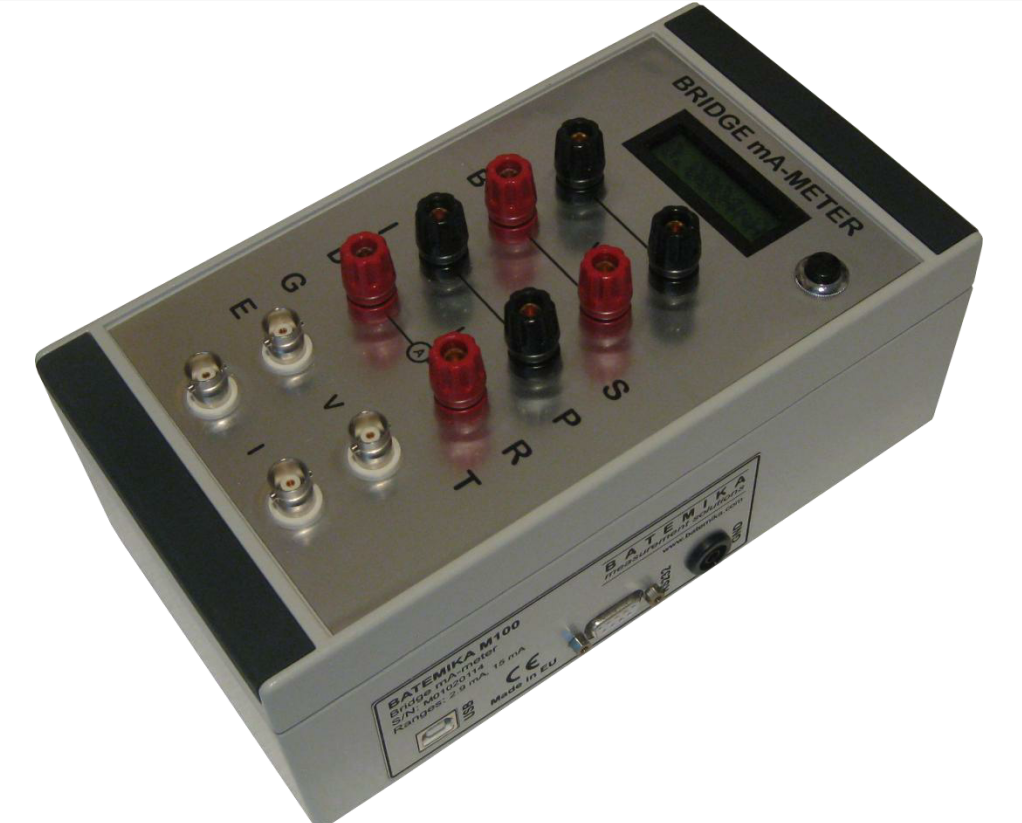

Batemika : BH-M001 M100 Bridge mA-Meter

The Batemika M100 measuring bridge is a device used for accurate and reliable current measurement of all types of resistance bridges used in thermometry.Accurate determination of current measurement is essential to improve the accuracy of self-heating correction in SPRT measurements.

M100 is capable of measuring AC or DC and arbitrary currents according to the required accuracy and can handle the measurement of all types of measurements on currents that may normally be encountered in common thermometry bridgesM100has specially designed connectors, which allow seamless integration of the device into the measurement system.The connectors allow the connection of BNC, banana, spade lug and bare wire cables in a four-wire configuration.M100 has an open and fully documented communication protocol for communication on remote interfaces, so end users can implement the M100 interface in any programming language. A LabVIEW ™ driver and three applications are provided as examples.

Description
Model number M100
Current ranges
 0 to 2.9 mA RMS
0 to 15 mA RMS
Bridge types
 AC and DC
Acquisition time 2 s
Settling time 30 s
Sampling frequency 50 kHz
Absolute accuracy 500 ppm
Ratio accuracy 200 ppm
External dimensions (WxHxD) in mm 120x220x100
Power supply USB 5 V, 500 mA
Power consumption 2.5 W max
Lipo battery capacity 2000 mAh, 7.4 Wh
Battery operation 24 h
Weight 1.7 kg
Communication interface USB and RS232



Features
  • Measurement of resistance-bridge current
  • Troubleshooting and diagnostics of resistance bridge operation
  • Improved self-heating correction
  • DC, AC and ADC-based resistance bridges
  • Easy integration in the measurement system
  • Standalone battery-powered operation
  • USB and RS232 communication interface
  • Connection box with BNC, spade lug, bare
    wire and banana plug options
  • Current waveform visualization and analysis
  • Analysis software and LabVIEW drivers included free of charge
