Transmille  |  SKU: TR_3200C

Transmille: 3200C Benchtop Calibrator - Loop, RCD, PAT's and Insulation Tester

€17.650,00
Tax included Shipping calculated at checkout.

The industry has determined that the 3200 series is the fastest solution for calibrating LOOP , RCD , PAT , insulation tests and also one of the safest solutions for calibrating HI-POT / BREAKDOWN testers .Traditional testing procedures in addition to requiring many parts / equipment for testing also expose to potential dangerous voltages for long periods ( up to 45 minutes may be required to perform a calibration ) .Using the 3200 series , can drastically reduce these times ( typically 15 minutes ) and allows for economical and safe calibration with a quick return on investment.

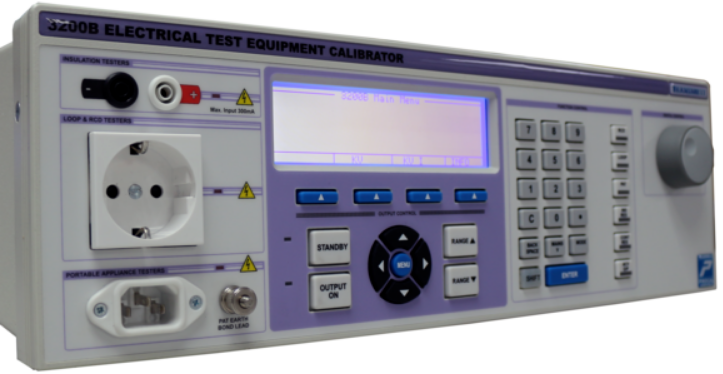

On the front panel of the 3200 are dedicated network sockets for Loop, RCD and PAT tests that avoid the need to make the connection of mains voltages using test leads . This important safety feature eliminates any risk of electrical shock since the connections are made with standard type plugs .

Description

The industry-leading 3200C series provides by far the fastest and safest solution for calibrating Loop, RCD, PAT's and insulation testers. Using the 3200C, calibration times can be drastically reduced while its accuracy ensures cost-effective, repeatable calibrations with a fast return on investment.

A dedicated, localized mains socket on the front panel provides direct connection for Loop and RCD testers, removing the need for 4mm test leads and crocodile clips — an important safety feature since connections are made with standard mains plugs. PAT testers connect directly to the IEC inlet socket using the supplied calibrated lead.

Transmille 3200C Benchtop Calibrator — Key Specifications
Continuity Resistance (Standard) 0.2Ω – 1kΩ, 1% (0.25% option)
Continuity Current 0 – 320mA, 1.3%
Insulation Resistance 0Ω – 2GΩ (2GΩ–10GΩ and 100GΩ option), 0.3% (0.1% option)
AC Voltage Output 100V – 400V, 0.2%
Loop Resistance 3mA – 3A, 1.2%
PAT Earth Bond Resistance 0.05Ω – 1kΩ, 0.5%
PAT Earth Bond Current Measurement 100mA – 30A, 1.5%
PAT Insulation Resistance 0Ω – 2GΩ, 0.3% (0.1% option)
PAT Leakage Current 2mA – 7.7mA, 1.5%
PAT Leakage Test Voltage 100V – 300V, 1.5%

Features

Manuals

3200 series brochure

3200 series operation manual
