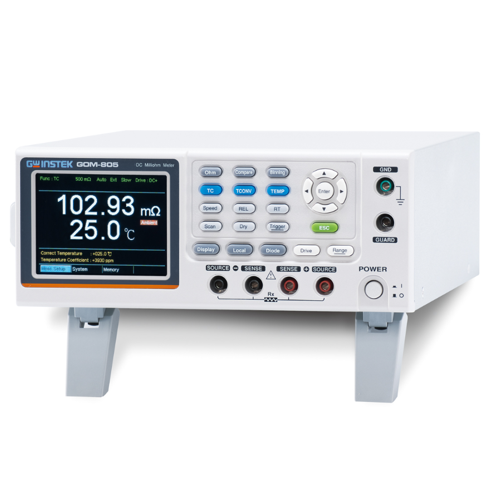

GW-Instek GOM-804 Milliohmmeter

The new GOM-804/805 series of D.C. (milliohm meter) meters, features relevant qualities such as a 3.5-inch TFT display , a maximum number of counts on display of 50,000 , a fast sampling rate of 60 readings per second, anoptimum measurement accuracy of 0.05% , a 4-wire measurement , temperature measurement and temperature compensation measurement to meet the prerequisite of making low-value resistance measurements.The GOM-805 also includes a drycircuittrigger mode forcontact resistance measurement.Other features, including 20 sets of user panel settings storage and many external control interfaces such as RS-232C, USB, Handler / Scan / EXT IO or GPIB (option), greatly elevate the practicality of the GOM-804/805 milliohm meter on practical applications.

Description
MODEL GOM-804
SKU 01OM804000GS
DRIVE MODE DC , Standby
Dry circuit No
standard interfaces USB , RS-232C , HANDLER/SCAN/EXT I/O,
interface option GPIB Option ( factory installed )
labview driver Yes

Features

- 50,000 counts
- 3.5" (320 x 240) TFT LCD display
- High accuracy of 0.05% precision
- 1Amp test current, 0.1µΩ resolution
- Fast measurement of 60 readings per second
- Four wire resistance measurement
- Temperature compensation measurement function
- Delayed measurement
- 20 sets of panel setting memory
- Dry circuit (GOM-805 only)
- Drive modes (GOM-805) : DC+/DC-, Pulsed, PWM, Zero, Standby
- Drive modes (GOM-804) :DC+, Standby
- Interface: USB device, RS-232C, Handler/Scan/EXT I/O, and GPIB (option)
