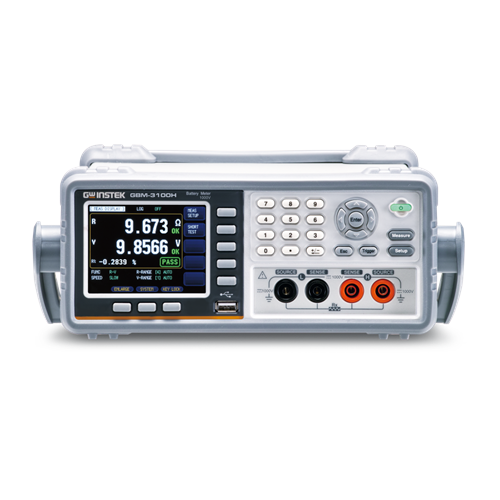

GW Instek GBM-3100H Battery Meter (1000V)

The new GBM-3000 series is used for bench testing of batteries. It features three models namely 1000V (GBM-3100H), 300V (GBM-3300) , 80V (GBM-3080). These instruments employ a 1kHz AC signal as the test signal and measure battery voltage and internal resistance at 1000V, 330V and 80V . The series features a 3.5 " TFT LCD display, 4-wire measurement method, high resolution in measurement display (6-digit voltage / 5-digit resistance) and GO / NOGO level determination of independent voltage and resistance . Various communication interfaces are available, and various types of battery measurements ranging from single cell to end product can be performed. This facilitates the 'user to make accurate measurements at all stages of production

Description
Model GBM-3100H (CE) 1000V
SKU 01BM310H00GS
AC Resistance 0~3.2kΩ
DC Voltage 0~1000V
Display screen 3.5"(320 x240) TFT LCD
Display resistance 5 digits
Display voltage 6 digits
Other functions
Range Selection
 Auto range, Hold range, Nom range
Comparator
 ABS, PER or SEQ
Contact detection
 OPEN & WIRE
Buzzer OFF, Pass, Fail
Trigger INT, EXT
Standard Interface USB Host / USB Device / RS-232C / Handler
Dimensions and weight 264(W) x 107(H) x 309(D) mm, Approx. 2.8kg



Features

Key features of the GBM-3000 series

  • 3.5' TFT LCD (320x240)
  • Measurement items: DC voltage and AC resistance
  • Voltage measurement: 1000V (GBM-3100H) or 300V (GBM-3300) or 80V (GBM-3080)
  • Resistance measurement: 0mΩ~ 3.2kΩ(max.)
  • Basic accuracy for voltage measurement: 0.01%
  • Basic accuracy for resistance measurement: 0.5%
  • Measurement resolution up to 0.1μΩ and 10μV, suitable for single-cell measurement
  • Independent GO/NOGO determination function for voltage and resistance respectively
  • The judgment mechanism of test lead (probe) disconnect/contact failure is to ensure the measurement reliability
  • Standard interfaces: USB host/device, RS-232C and Handler
