GW Instek | SKU: 03UNDM532000

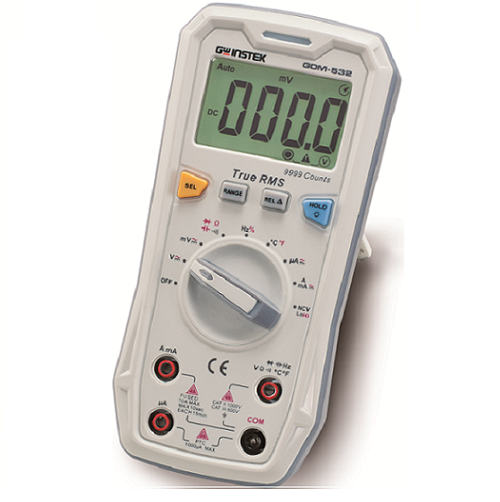

GW Instek GDM-532 Handheld Digital Multimeter 9999 Counts with True RMS Measurement

Name: GW Instek GDM-532 Handheld Digital Multimeter 9999 Counts with True RMS Measurement
Brand: GW Instek
SKU: 03UNDM532000
Price: 50.00 EUR
Availability: InStock

The GDM-500 series portable multimeter is a compact, high-accuracy, battery-powered multimeter designed to meet the application requirements of service technicians. The design of the GDM-500 series follows some features typical of mobile devices : automatic power off to preserve battery life, a large backlit display for a crisp view, a rotary and push-button selector for ease of use, and NCV (non-contact voltage detection) function for outdoor use.

The basic functions of the series match the extended functionality of benchtop multimeters: fuse-protected current input, true rms for accurate AC measurements, audible/visual overload alarm, automatic measurement, duty cycle and relative mode. The compact, reliable and economical GDM-500 series is ideal for a variety of uses.

Description

MODEL	GDM-532
SKU	03UNDM532000
Max. Display	9999
Auto Ranging	√
Analog Bar
True RMS	√
Display Backlight	√
Auto Power off	√
Curr. Range Protection	Fuse
DC Voltage	999.9V
AC Voltage	999.9V
DC Current	10A
AC Current	10A
Resistance	99.99MΩ
Capacitance	9,999mF
Frequency	9.9MHz
Diode	√
Continuity	√
Temperature	√
Duty Cycle(%)	√
Transistor(hFE)
NCV Function	√
REL	√
Data Hold	√
Peak Hold
MAX MIN
LoZ ACV
LPF ACV
Audible / Visual Alarm	√
AC+DC Measurement
Interface
Safety Rating	CAT II 1000V
	CAT III 600V
